AWS Storage Types

Three storage types:

  • Block storage: Splits data into fixed-size blocks with addresses → efficient random access; common for OS, DB volumes.
  • File storage: Hierarchical directory tree (paths); each file has metadata (name, size, created date). More folders can add latency.
  • Object storage: Flat namespace; each object = data + metadata + unique identifier; optimized for scale & throughput.

File Storage (What/When)

  • Structure: Tree-like folders (like traditional file systems).
  • Note: Every additional folder adds latency.
  • Use cases: large content repositories, dev environments, user home directories.

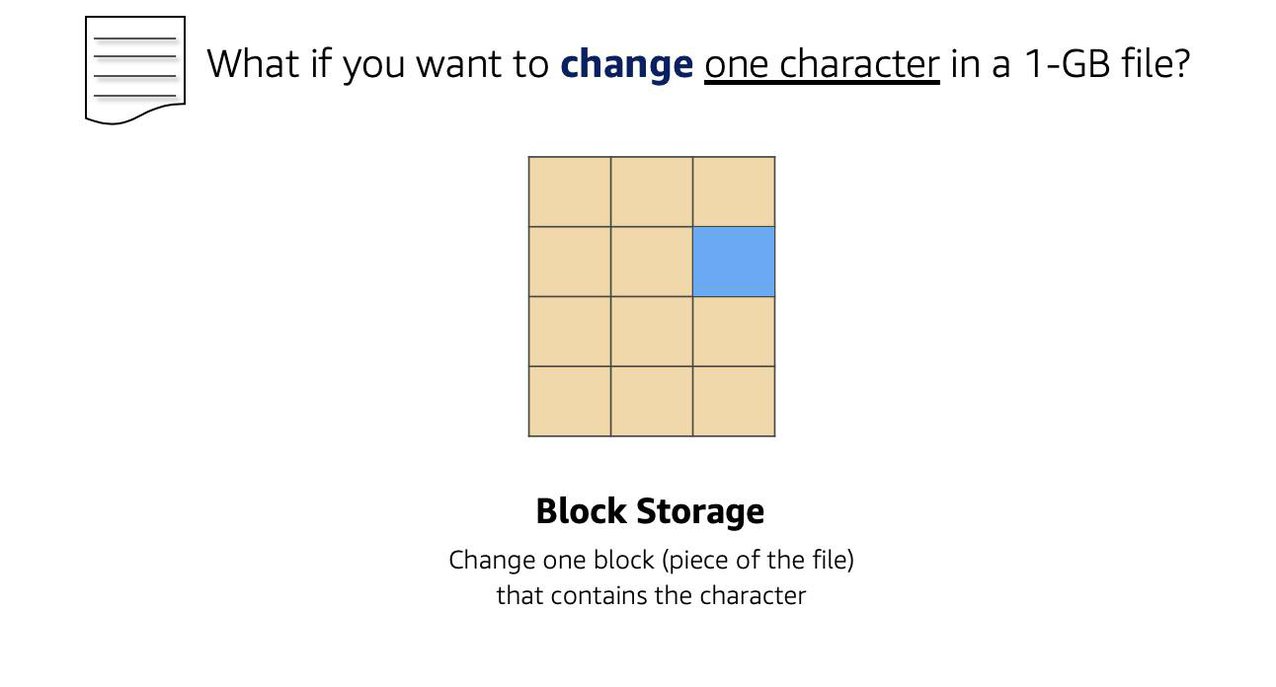

Block Storage (What/Why)

  • Concept: Files split into addressable blocks → efficient retrieval.
  • Typically used where low-latency, frequent updates, or OS-level mount semantics are needed.

Object Storage (What/Why)

  • Flat structure (no true hierarchy).
  • Good for high throughput and massive scale.
  • Updating part of an object generally means overwriting the whole object.

File vs Object (from your notes):

  • File: hierarchy YES; low-latency R/W; partial edit implies overwrite file; example: Amazon EFS
  • Object: flat; high throughput; partial edit implies overwrite object; example: Amazon S3
File Storage Object Storge
Hierarchy - YES; Folder or tree-like structure Flat Structure. No hierarchy
Good for low-latency read-write Good for high throughput
Edit a portion, you overwrite the whole file Edit a portion, you overwrite the whole object
Amazon EFS Amazon S3

EC2 Storage Options: Instance Store vs EBS

Two EC2 instance storage options

  • Instance Store: ephemeral block storage; good for stateless workloads.
  • EBS: persistent block storage; behaves like an external drive that can outlive the instance.

flowchart TD
  A[[Temporary<br>Instance Store]]
  B[[Permanent<br>EBS]]
  C(Storage connected<br>to EC2)
  C --> A
  C --> B

2.2 Attachment relationships (EC2 ↔︎ EBS)

1 EC2 to Many EBS Volumes

  • An EBS volume (in the same AZ) can be detached from one EC2 and attached to another.

flowchart LR
  EC[EC2]
  EB1[[EBS 1]]
  EB2[[EBS 2]]
  EB3[[EBS 3]]
  EC --> EB1
  EC --> EB2
  EC --> EB3

1 EBS to 1 EC2 (typical)

flowchart LR
  EC[EC2] --> EB1[[EBS 1]]

1 EBS to Many EC2 (supported for some instances)

flowchart LR
  EB1[[EBS 1]]
  ECA[EC2 A]
  ECB[EC2 B]

  EB1 --> ECA
  EB1 --> ECB

Analogy/limits (from your notes):

  • Like an external drive: if compute fails, data can still remain on EBS.
  • Volumes have max size limits (scalability bounded per volume).

2.3 Scaling EBS volumes

Two main approaches:

  1. Increase volume size up to the maximum (16 TB per volume, per your notes).
  2. Attach multiple volumes to a single EC2 instance (one-to-many).

2.4 AMI types (Instance Store-backed vs EBS-backed

flowchart TD
  AMI(AMI)
  AMI1[[Instance Store<br>Backed AMI]]
  AMI2[[EBS-Volume<br>backed AMI<br>most common]]
  AMI --> AMI1
  AMI --> AMI2

Key points:

  • If an instance running on instance-store backed AMI is stopped, data is lost.
  • Instance-store backed AMIs are useful for stateless apps.
  • Reboot does not lose instance-store data (stop/hibernate/terminate does).

3) Latency vs Throughput (Choosing storage/perf tradeoffs)

Latency = time for one packet to reach destination (important for DB + web interactions)

flowchart LR
  W[Web Server] -- 1 packet sent<br> in 10 millisec --> C[Client]

Throughput = number of packets delivered per second (important for big data)

flowchart LR
  W[Web Server] -- 10 packets sent<br> in 1 sec --> C[Client]

EBS Volume Types (SSD vs HDD) + Fit-to-Workload

Rule of thumb (from your table):

  • Provisioned IOPS SSD → very low latency (databases, payment systems)
  • General Purpose SSD → low latency (web servers, general transactional workloads)
  • Throughput Optimized HDD → very high throughput (big data)
  • Cold HDD → infrequently accessed; can tolerate higher latency, still may need throughput for transfers

Key point: SSDs are faster and more expensive than HDDs.

EBS Snapshots (Backups)

  • Incremental backups
    • First snapshot stores full data
    • Later snapshots store only changed blocks

Amazon S3 (Object Storage)

What S3 is

  • S3 is object storage: flat structure, objects addressed via unique identifiers.
  • Object = file + metadata (store as many as needed).

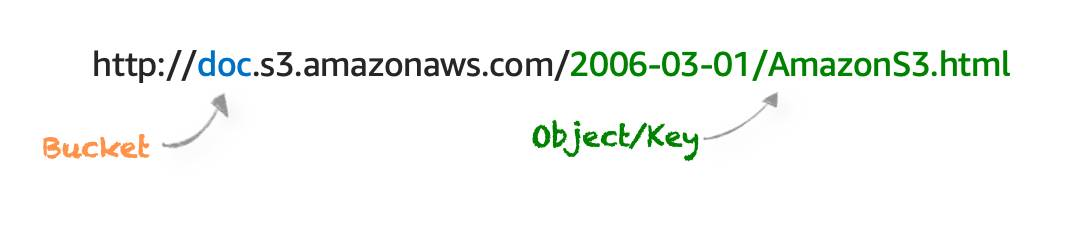

S3 URL/structure (image requested)

S3 Security

  • Everything is private by default
  • You can make buckets/folders/objects public, but typical best practice is granular access.
  • Two main access controls:
    • IAM policies
    • S3 bucket policies

When to use S3 bucket policies (per your notes):

  • Simple cross-account access without IAM roles
  • IAM policy size limit constraints (bucket policies support larger size)

Bucket policies apply to buckets only, not folders/objects.

S3 Encryption

  • Encryption in transit and at rest
  • Server-side encryption: S3 encrypts before storing; decrypts on download
  • Client-side encryption: you encrypt before upload and manage keys/tools

S3 Versioning

  • Helps recover from accidental delete/overwrite
  • Delete puts a delete marker (object not immediately removed); remove marker to restore
  • Overwrite creates a new version; older versions remain accessible

Bucket states:

  • Unversioned (default)
  • Versioning-enabled
  • Versioning-suspended (no new versions, old versions remain)

S3 Storage Classes (quick mapping)

  • S3 Standard: frequent access; low latency/high throughput; higher cost; 11-nines durability
  • S3 Intelligent-Tiering: unpredictable access; auto-moves between frequent/infrequent tiers; small overhead
  • S3 Standard-IA: infrequent but rapid access; lower storage cost, higher retrieval cost
  • S3 One Zone-IA: infrequent, single-AZ redundancy; cheaper; lower availability
  • S3 Glacier: archival; minutes to hours retrieval; very low storage cost
  • S3 Glacier Deep Archive: lowest cost; retrieval up to ~12 hours
  • S3 Outposts: on-prem S3 for local residency/low latency needs

Lifecycle Management (Automate cost control)

Lifecycle policies can automate:

  • Transition (move between storage classes)
  • Expiration (permanent deletion)

Good candidates:

  • Periodic logs (keep 1 week/month then delete)
  • Data whose access frequency decreases over time (hot → warm → archive → delete)

Storage Services Recap

  • EC2 Instance Store: ephemeral block storage; for stateless apps; persists through reboot, not through stop/hibernate/terminate.
  • EBS: persistent; supports resizing + snapshots; SSD for I/O sensitive, HDD for throughput intensive.
  • S3: object storage; pay-as-you-go; replicated across multiple AZs; not attached to compute.
  • EFS / FSx: serverless file services; no upfront provisioning; pay for use.

Quiz Notes (Key Takeaways)

  • Max single S3 object size: 5 TB (good for media/video hosting).
  • EBS fits high-transaction relational DB storage layers.
  • Instance store data persists on reboot, not on stop/hibernate/terminate.
  • S3 Standard-IA vs Glacier Deep Archive:
    • IA when rarely accessed but needs quick retrieval
    • Deep Archive when rarely accessed and retrieval delay is acceptable (often for compliance/legal retention)
  • Block storage is best when only a small portion of a file changes.

Resource link (as provided): Storage_quiz
