If you prefer reading this in my Medium Post: Single LLM to Agentic AI: A Visual Take on GenAI’s Evolution

Motivation of the Talk

Before jumping onto the Agentic AI bandwagon,
could we reflect on the evolution that led to the current Agentic AI era?

Agenda of this Presentation in a Picture

Agenda

Evolution of GenAI Applications
- 1. Stream Processing LLM Applications
- 1. Batch Processing LLM Applications
- Detour: The Evolution of Reasoning in LLMs
- 1. Agentic Applications
What the Experts say?

Agenda

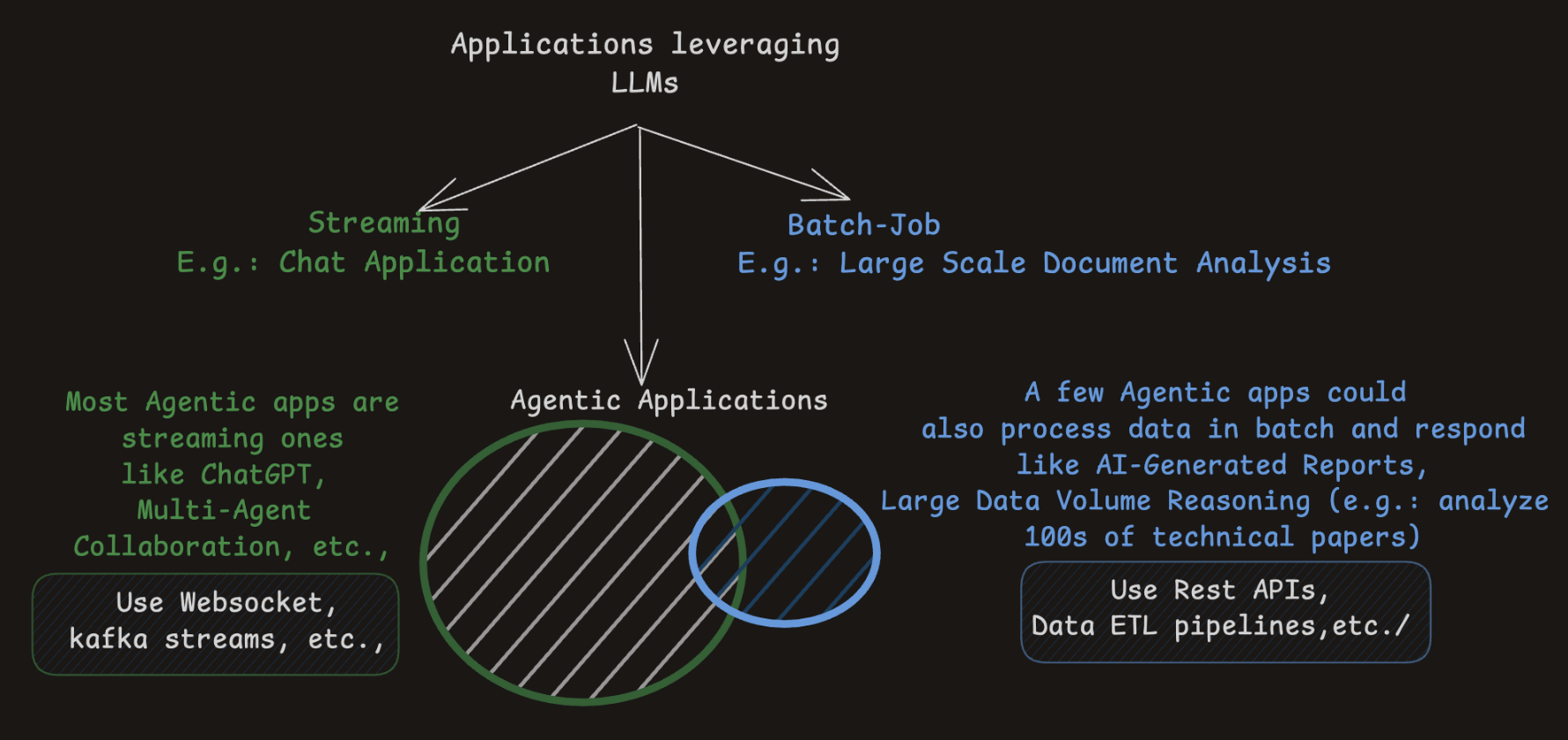

Evolution of GenAI Applications
- 1. Stream Processing LLM Applications
  - Data processed in real-time
- 1. Batch Processing LLM Applications
  - Data collected and processed in batches
- The Evolution of Reasoning in LLMs
- 1. Agentic Applications
  - Almost all agentic apps are streaming LLM applications
  - Some agentic apps do process data in batch, at least in the background!

Section 1

Stream Processing LLM Applications

A Single LLM API Call Response
A Chatbot with Contextual History
A RAG Chatbot

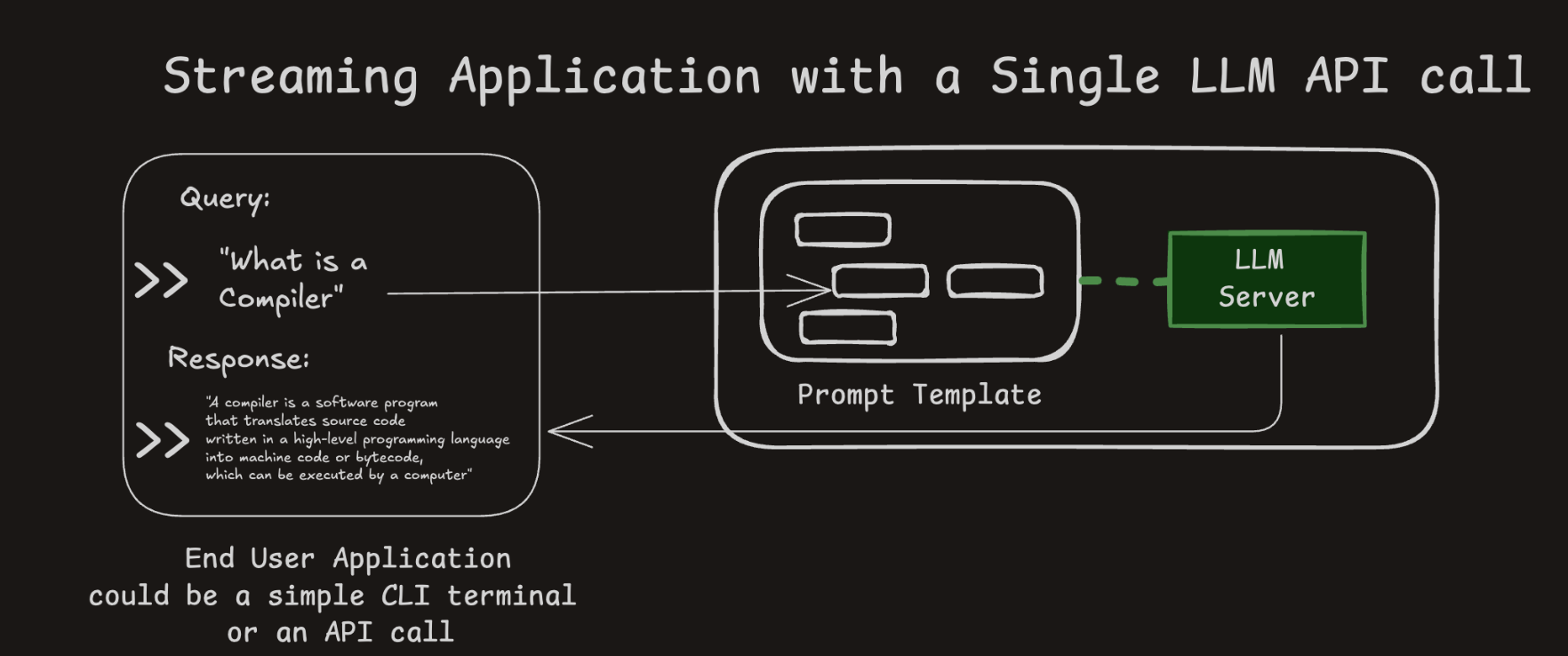

LLM Application with a Single LLM API Call

1 LLM call per response
Your query fits into a set prompt of the selected LLM model

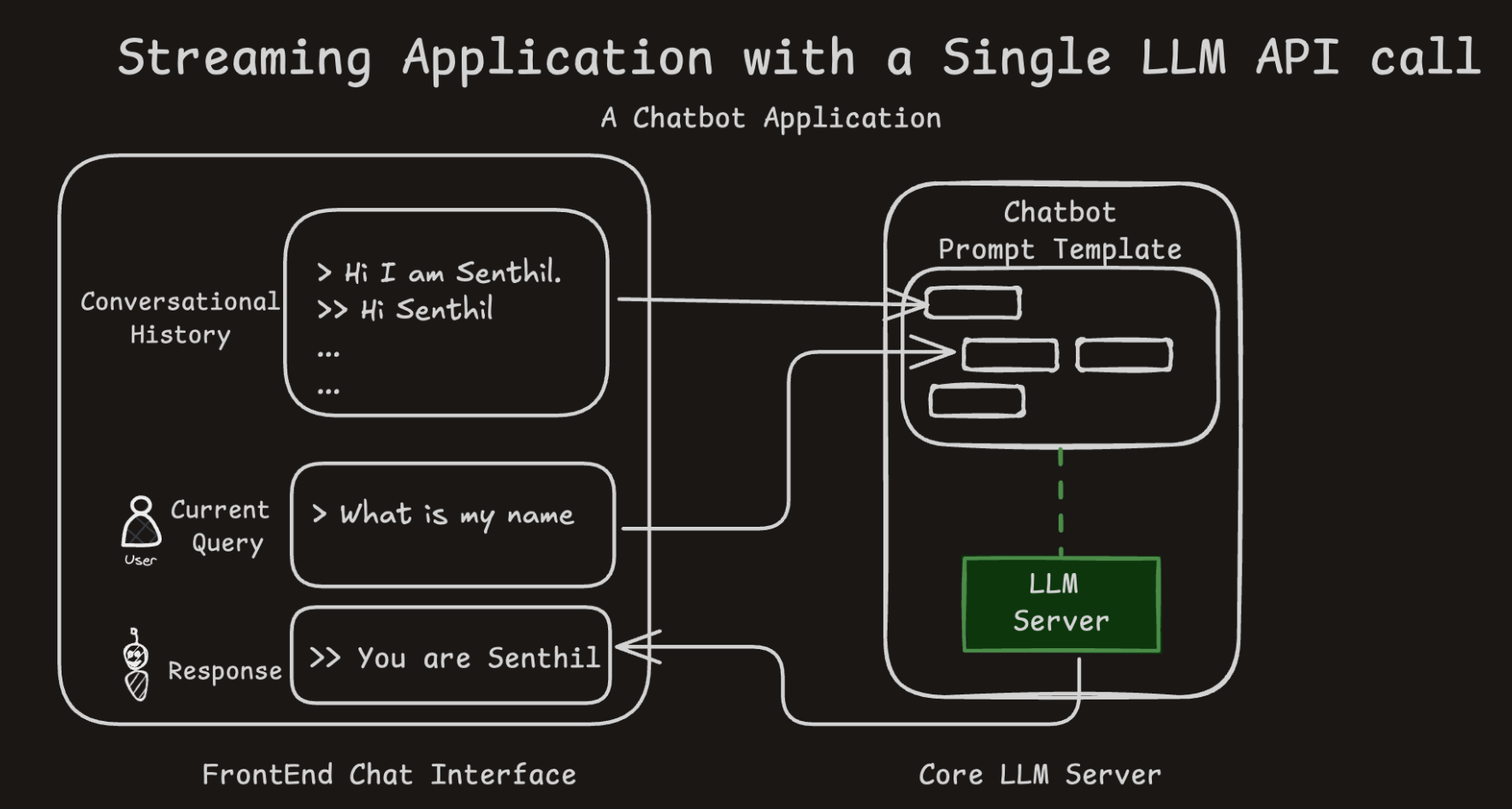

Chatbot Application with a Single LLM API Call

Adds contextual history to prompts, enhancing conversational memory.
Still makes only one LLM call per message, but simulates continuity.
Chat history is stitched manually into each prompt (stateless memory).

Image Inspiration: Jay Alammar’s Hands-on Large Language Models

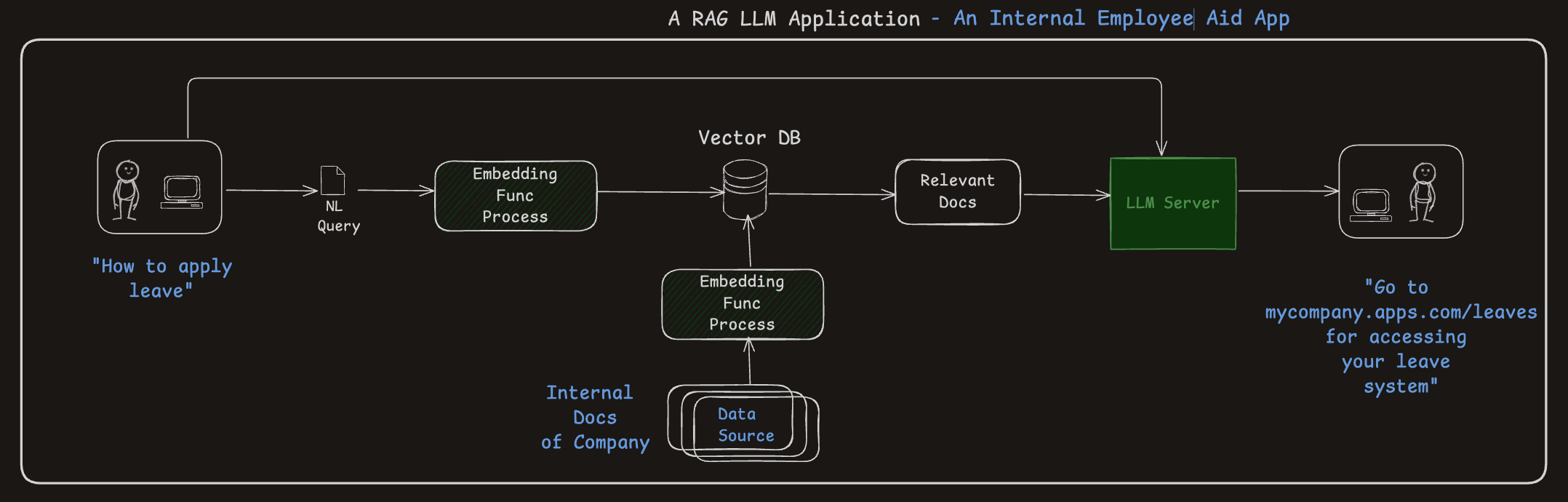

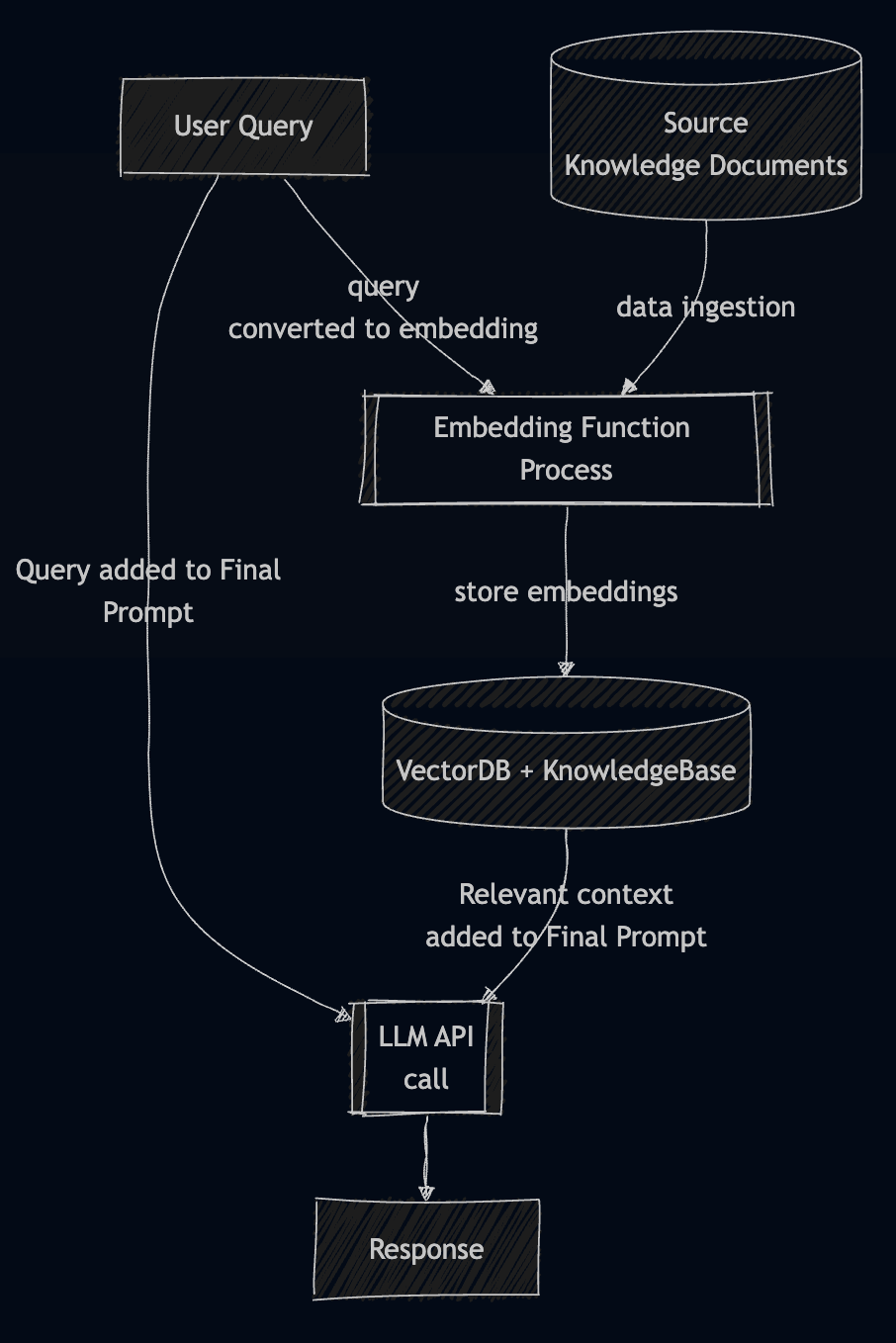

RAG Chatbot (1/2)

Embeddings + vector search = more accurate and context-aware responses.
A powerful architecture for grounding answers in known data sources (better for avoiding hallucinations)

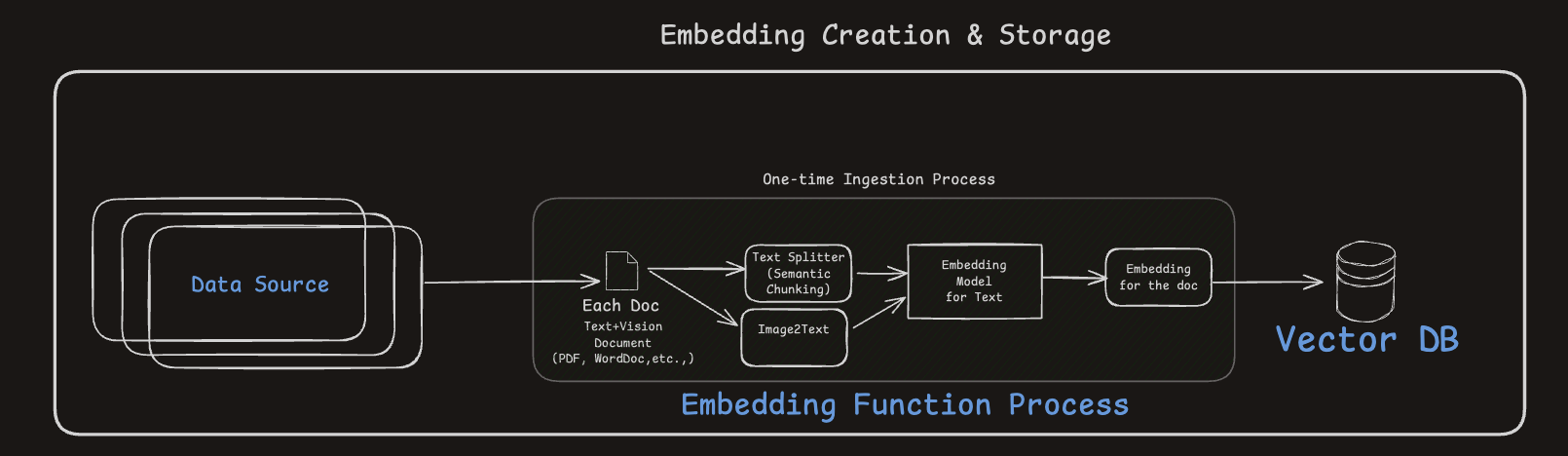

RAG Chatbot (2/2)

Converts raw documents (text/images) into semantically rich embeddings.
Embeddings are indexed into a Vector DB for fast similarity search.
Document chunking improves search granularity and retrieval accuracy.
Better your chunking, better is the accuracy of answers
Better the embeddings in encoding meaning, better is the accuracy of answers

LLM RAG vs Agentic RAG

Jumping a few steps here but we will circle back to Agentic RAG

2. Batch Processing LLM Applications

Section 2

Batch Processing LLM Applications

A Text Classification Application
- with 1 LLM API call per datapoint
A Chained LLM Application

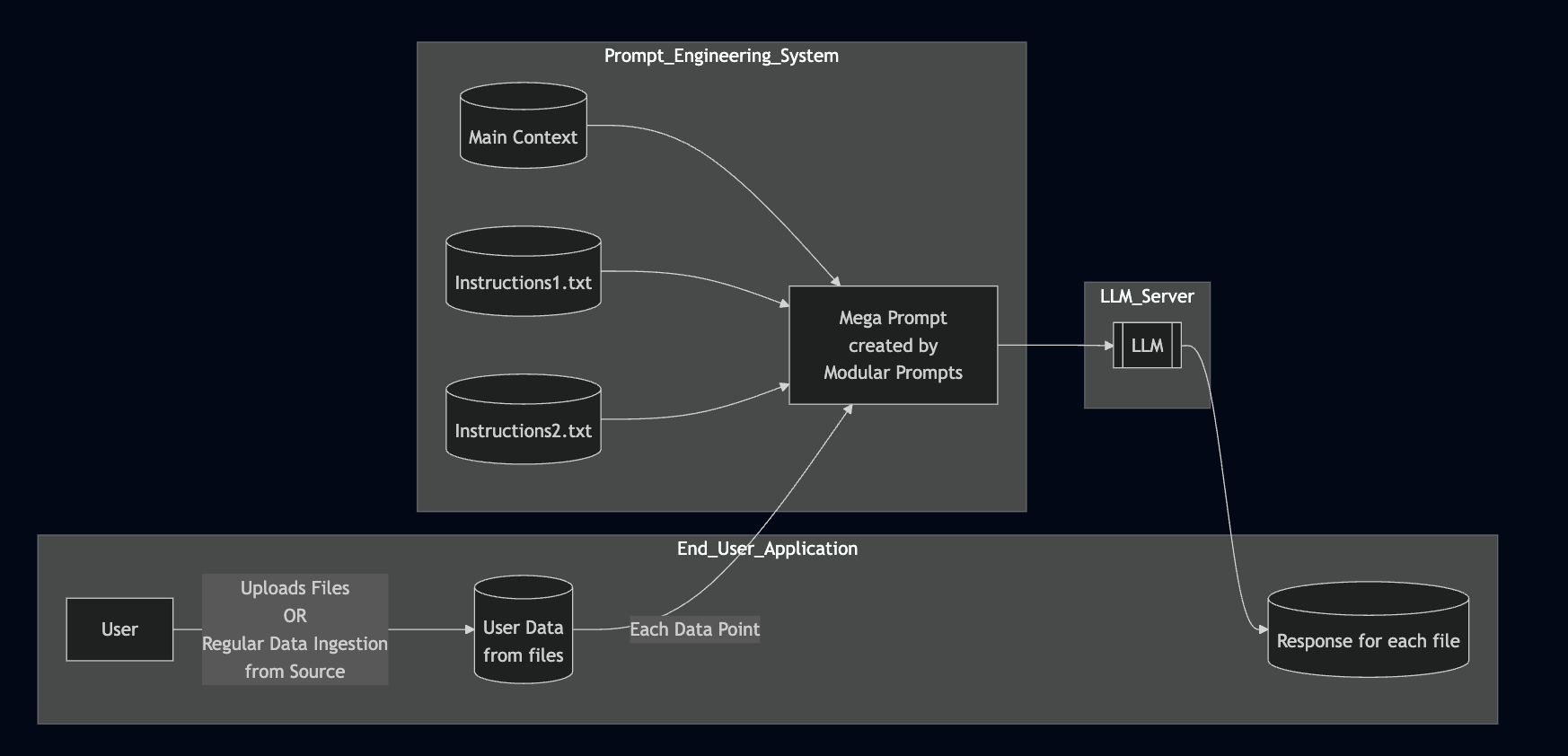

A Typical Batch Processing LLM Application

Context or instructions can be dynamically adjusted via prompt templating
External context can be modularized to avoid long, hard-coded prompts
All data in the same batch use the same prompt template

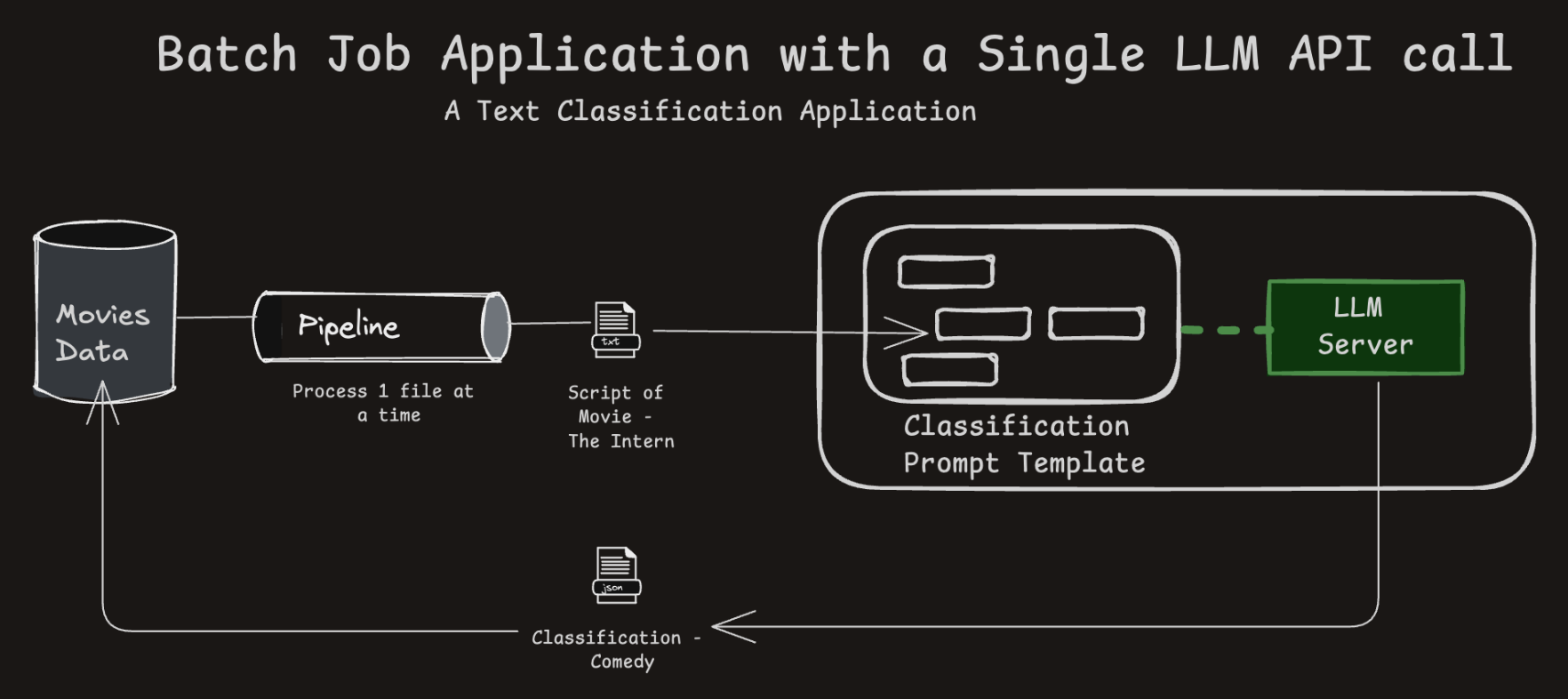

A Text Classification Application

Processes multiple data items (e.g., documents) using the same LLM pipeline.
Scales LLM use to bulk operations like NER tagging or classification.

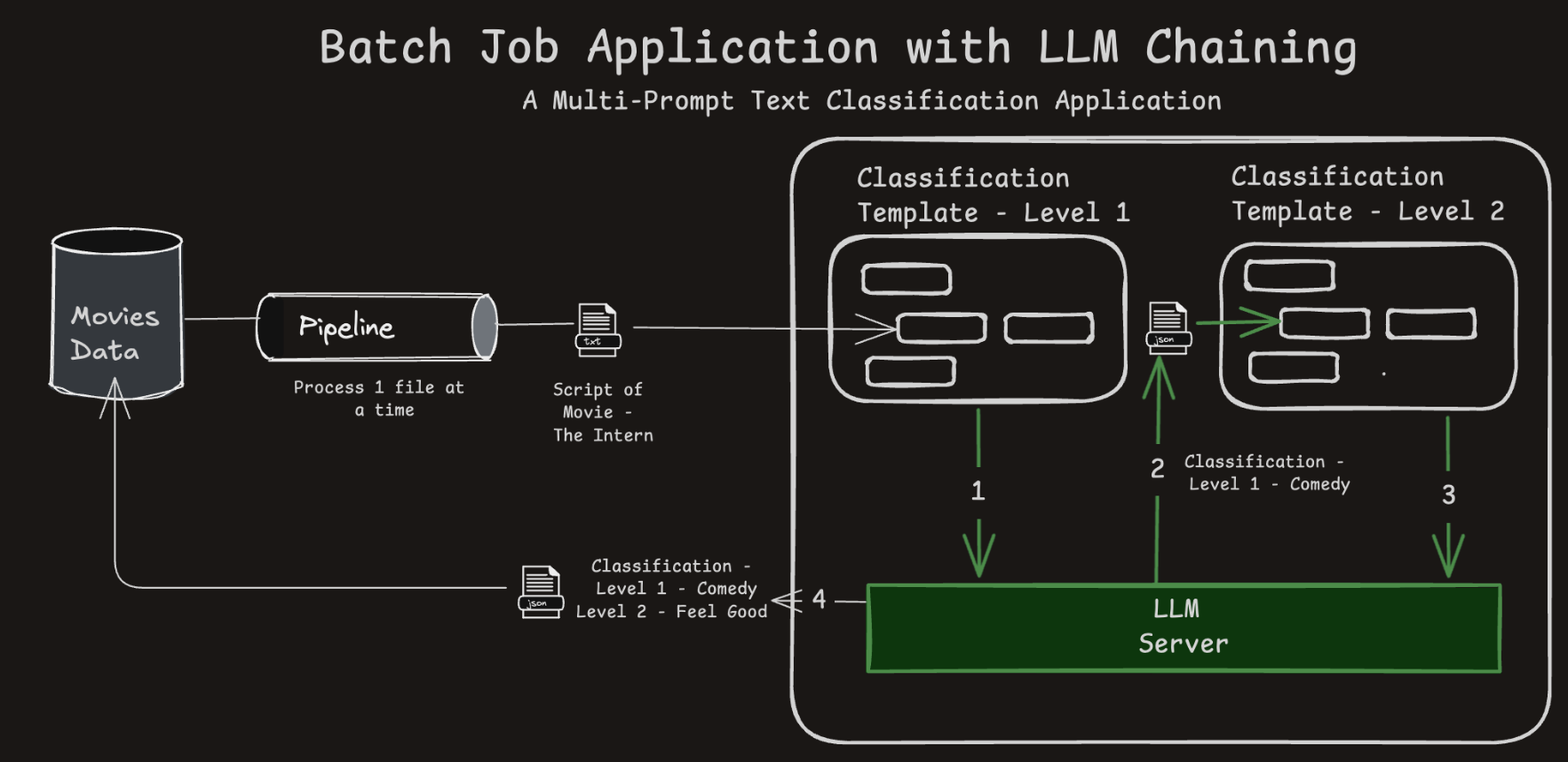

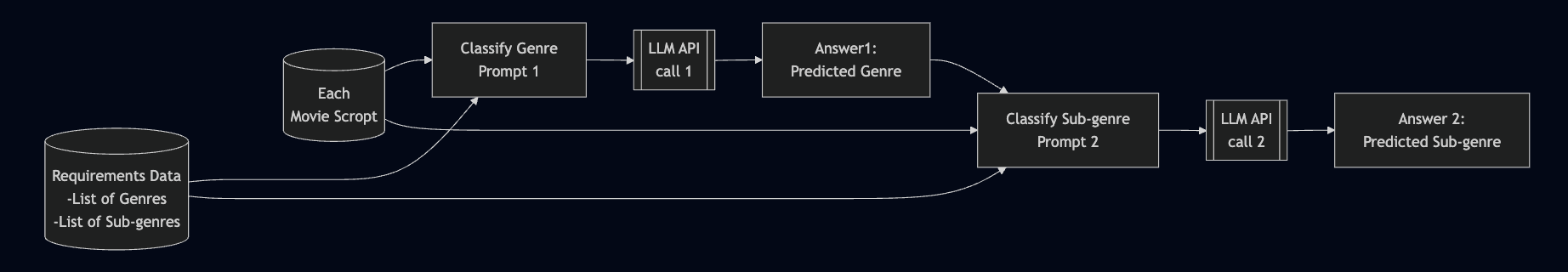

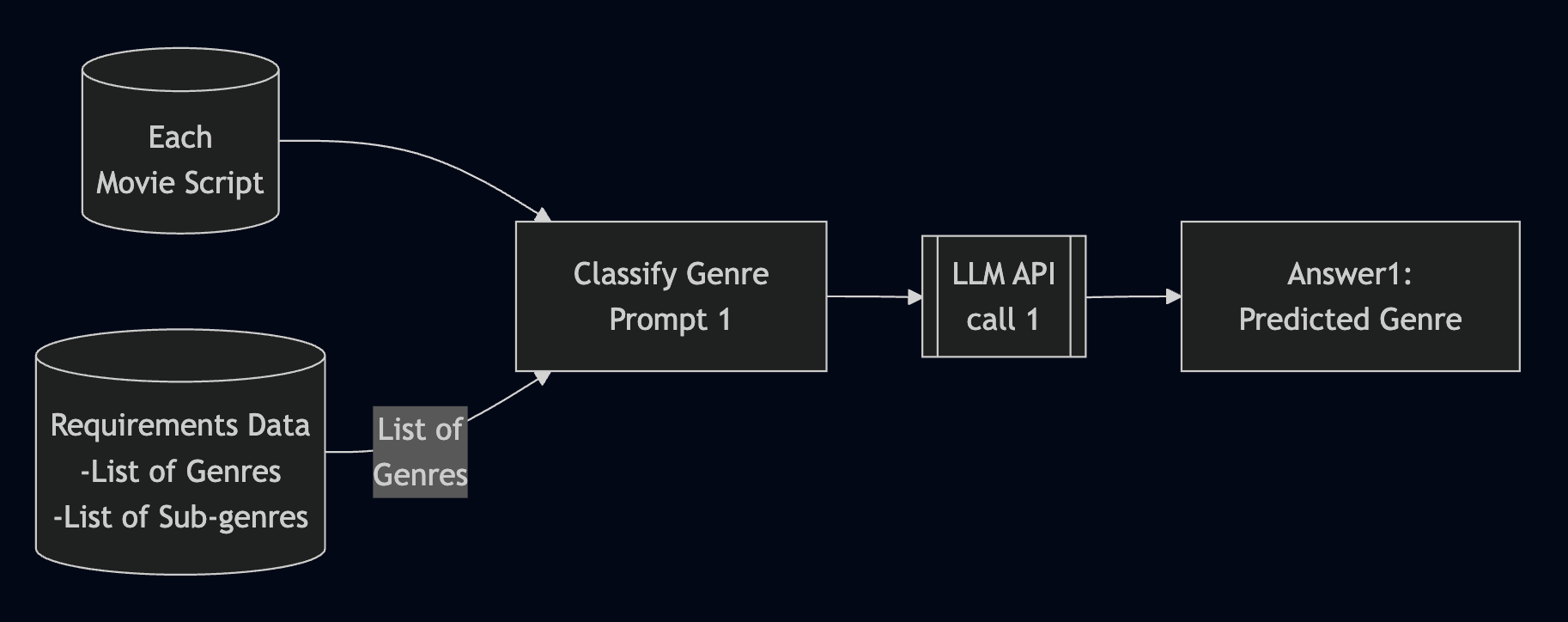

A Chained LLM Application (1/2)

Uses chained prompts where the output of one LLM call feeds into another.
Demonstrates how logic can be split into reusable, modular steps.

A Chained LLM Application (2/2)

Detour Section -

The Evolution of Reasoning in LLMs

Prompt Engineering Approaches - In Focus - CoT and ReAct
Large Reasoning Models <– Are there any takers?

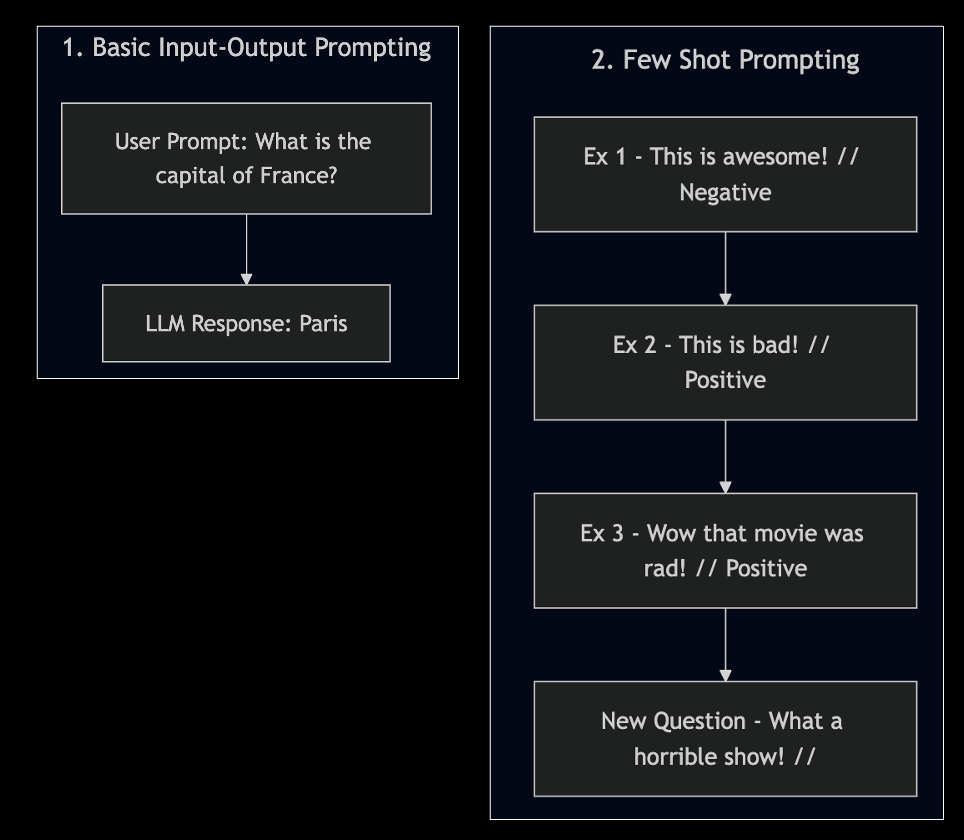

How Prompt Engineering Started

As the context window of LLMs improved,
- Input-Output Prompting evolved into Few Shot Prompting for better results

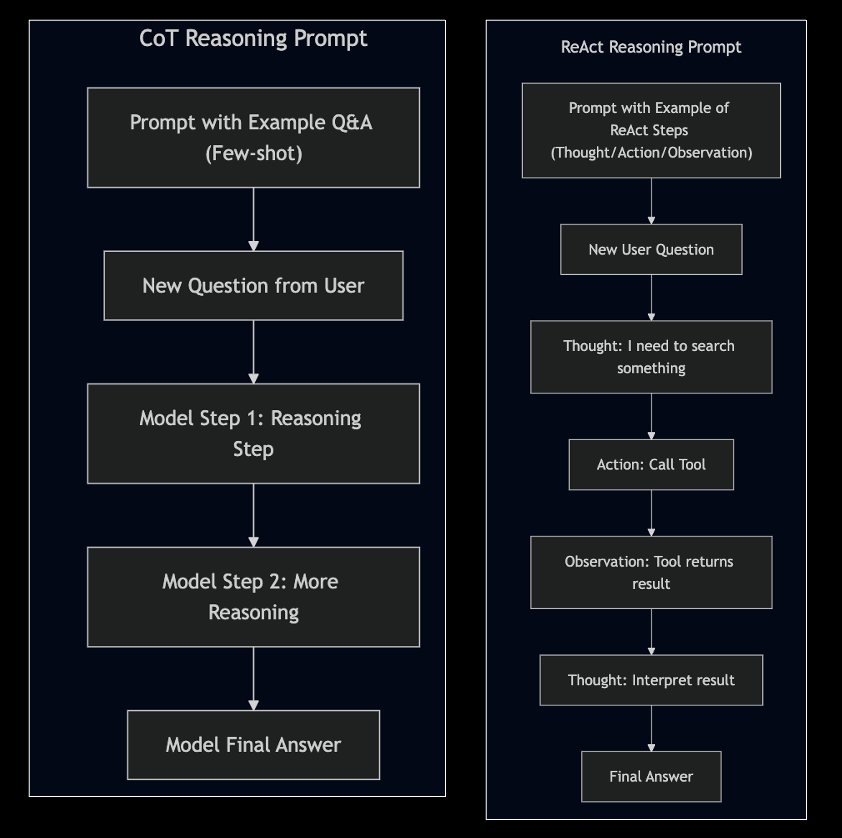

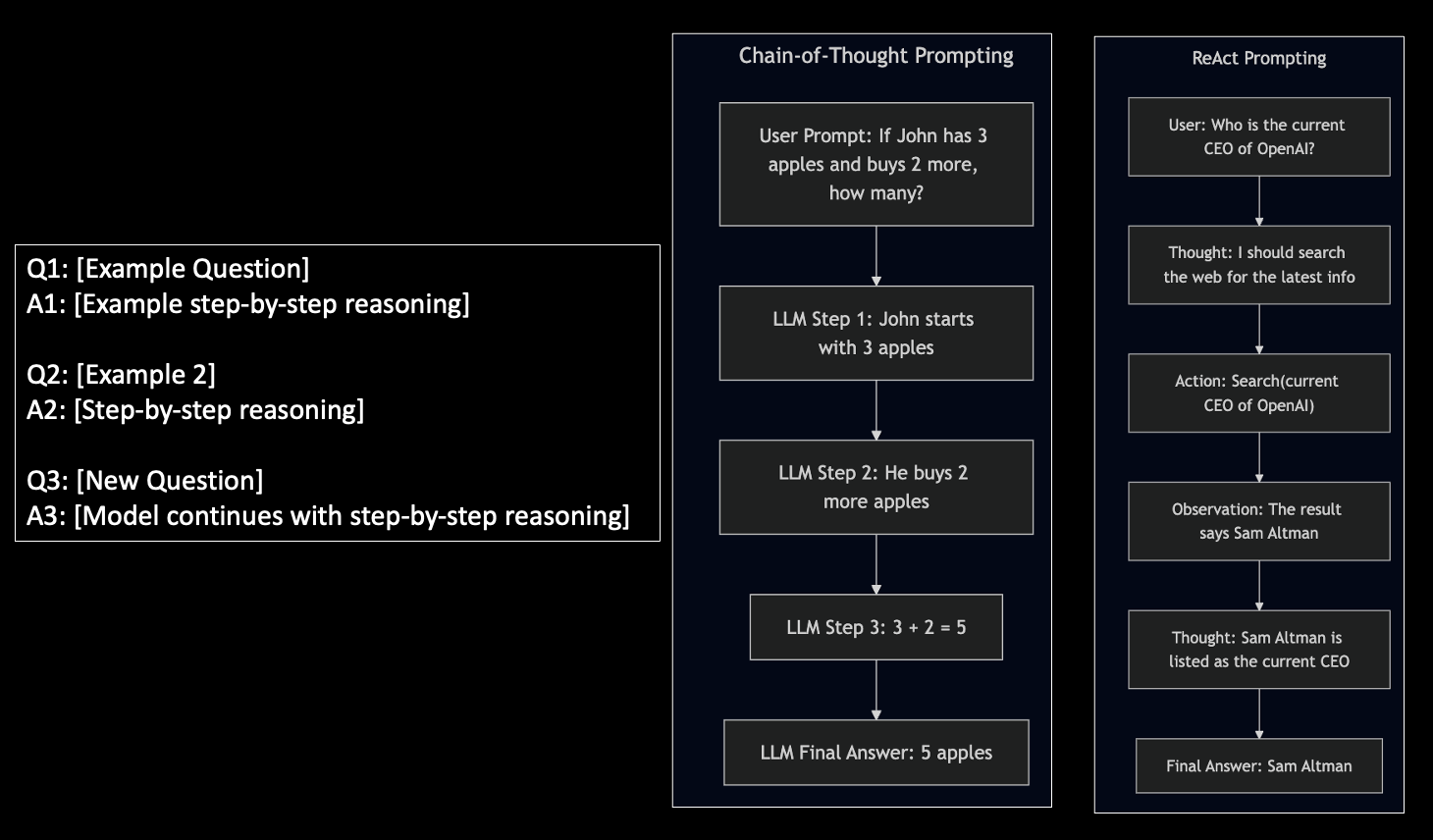

Reasoning Prompts - CoT & ReAct Prompts in Few Shot Style

Explaining LLMs to think/reason step by step with examples

Reasoning Prompts - CoT & ReAct Techniques During Inference

Explaining LLMs to think/reason step by step with examples

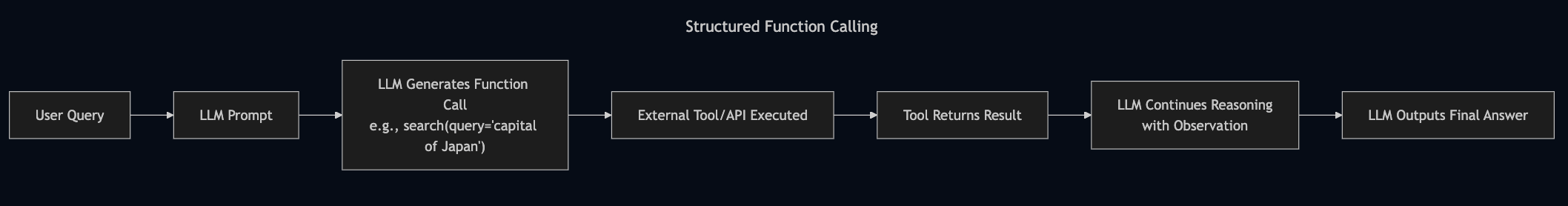

Structured Function Calling - A Robust Alternative to ReAct

The structured JSON that LLM generates

{
  "function": {
    "name": "search_web"
    },
  "parameters": {
    "query": "capital of Japan"
  }
}

Structured Function Calling - OpenAI Example

#0. Implement the tool

def search_web(search_query)
  ...
  ...
  return tool_answer

# 1. Describe the tool
tools = [
    {
        "type": "function",
        "function": {
            "name": "search_web",
            "description": "Searches the web for a factual answer to a question.",
            "parameters": {
                "type": "object",
                "properties": {
                    "query": {
                        "type": "string",
                        "description": "The question or term to search for"
                    }
                },
                "required": ["query"]
            }
        }
    }
]

# Step 2: Pass the prompt query to the OpenAI
# Let OpenAI decide if it wants to use the tool
messages = [
    {"role": "user", "content": "What is the capital of Japan?"}
]


response = openai.ChatCompletion.create(
    model="gpt4o",
    messages=messages,
    tools=tools,
    tool_choice="auto"
)

# Step 3: Execute the Tool Call
tool_call = response.choices[0].message.get("tool_calls", [None])[0]

if tool_call:
    function_name = tool_call.function.name
    arguments = eval(tool_call.function.arguments)  # or use `json.loads`

    # Step 4: Simulate calling the function (you’d implement it)
    if function_name == "search_web":
        query = arguments["query"]
        tool_result = search_web(query)

        # Step 5: Append tool response and ask model to finish
        messages += [
            response.choices[0].message,
            {
                "role": "tool",
                "tool_call_id": tool_call.id,
                "name": function_name,
                "content": tool_result
            }
        ]

        final_response = openai.ChatCompletion.create(
            model="gpt4o",
            messages=messages
        )

        print("🧠 Final Answer:", final_response.choices[0].message["content"])
else:
    print("💬 Direct Answer:", response.choices[0].message["content"])

ReAct vs Structured Function Calling

Feature	ReAct (Prompt Text)	Function Calling (Structured JSON)
Output Format	`"Action: Search('capital of Japan')"`	Structured JSON with function + args
Parsing Required?	❌ You parse the text manually	✅ Handled by OpenAI, LangChain toolkit
Execution Clarity	❌ Model can hallucinate tool syntax	✅ Only valid, defined tools used
Model Adherence	🟡 You “hope” it follows format	🎯 You give it tool schema (e.g.: OpenAPI)
Robustness for Development	❌ Fragile	✅ Very reliable and scalable

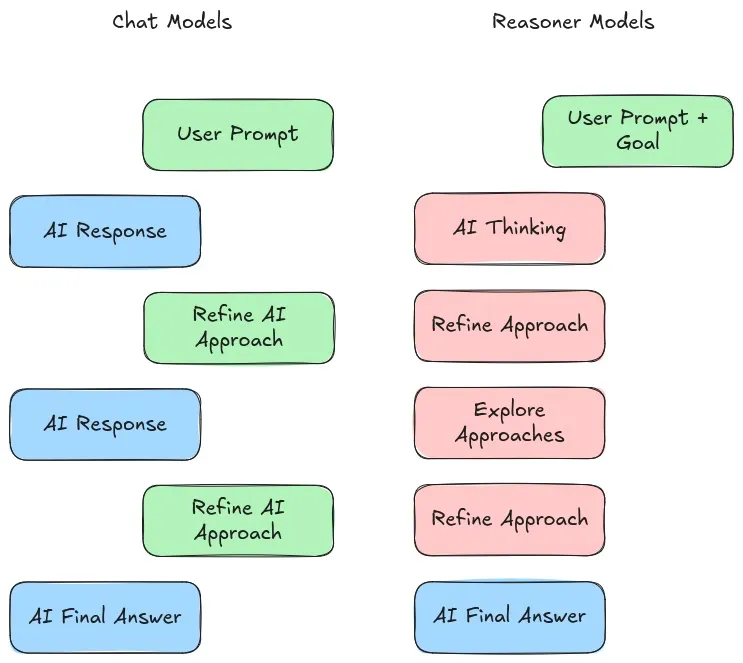

Large Reasoning Models

LLMs: input → LLM → output statement
LRMs: input → LRM → Keeps Planning Steps → Finally, output statement
LRMs are generating text similar LLMs but they are trained to “think before acting”
E.g.: OpenAI o1, DeepSeek R1
LRMs think during inference, hence needing more “test-time compute”

Source 1: Aishwarya Naresh’s Substack
Source 2: A Visual Guide to Reasoning LLMs

Recap

We have discussed the following so far:
- How LLMs are used in streaming and batch application
- How LLMs work with Tools and RAG setup
- How LLMs think (planning/reasoning/reflection,etc.,)
- In Agentic AI, we put the above concepts together

Section 3 -

Agentic AI Applications

Components that comprise an Agent
Architecture of a Single Agent
What do these protocols - MCP and Google’s A2A - mean?
Real World Agents - ChatGPT vs Perplexity vs DeepResearch
What are Multi-Agent Systems
What do the Experts say?

What are Agents?

LLMs generate text
Agents generate text and also perform actions
Chatbot = LLM + Memory
RAG Chatbot = LLM + Memory + Vectorized(Source Docs)
Tool LLMs = LLM (brain) + Function Calling (hands)
Agent = LLM + Tools + Memory + Planning (next steps, state management)
Agent = Engineering Wrappers around LLMs

Source for the perspective - “Engineering Wrappers around LLMs”:
Aishwarya Naresh in Substack

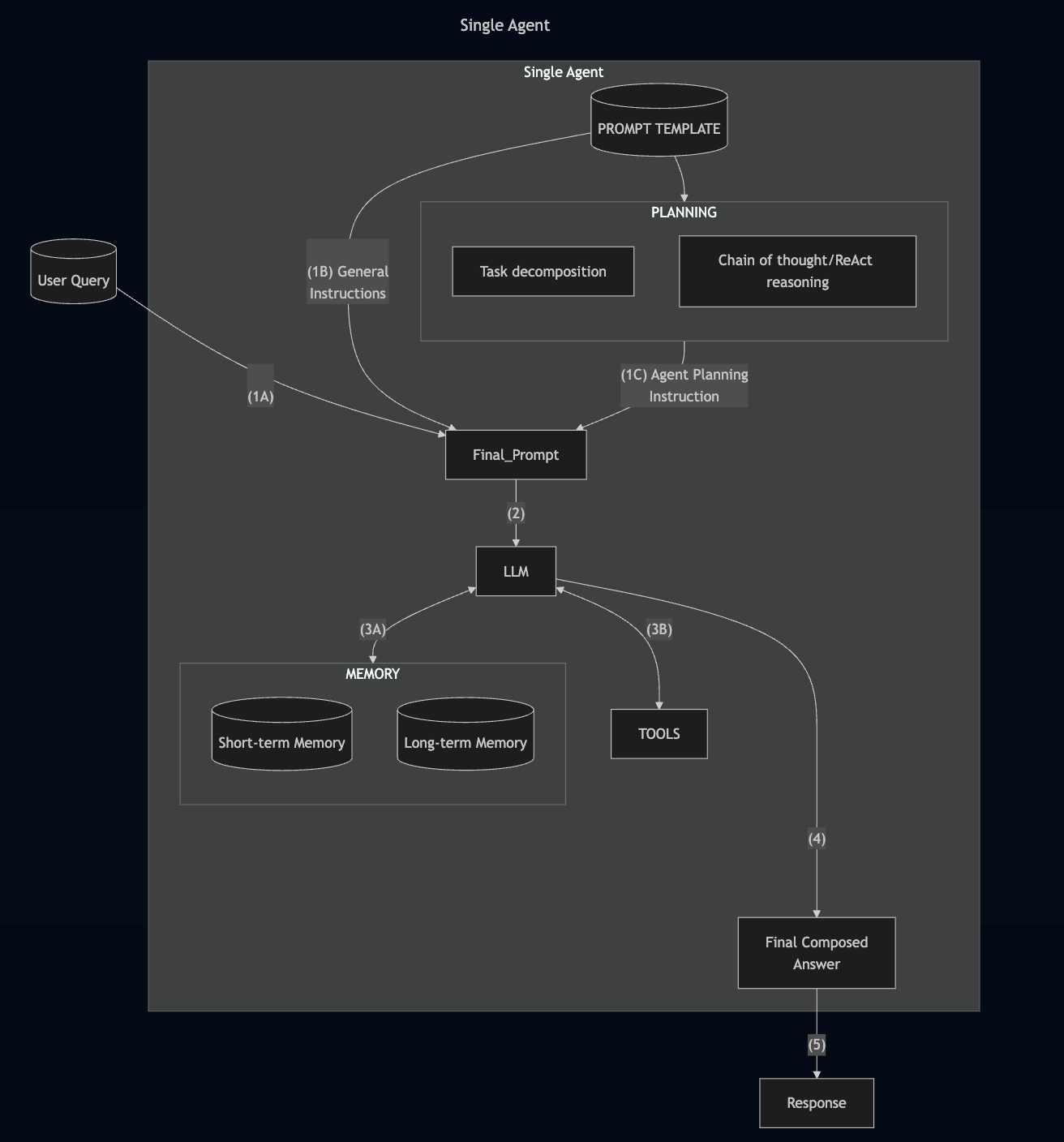

Architecture of a Single Agent

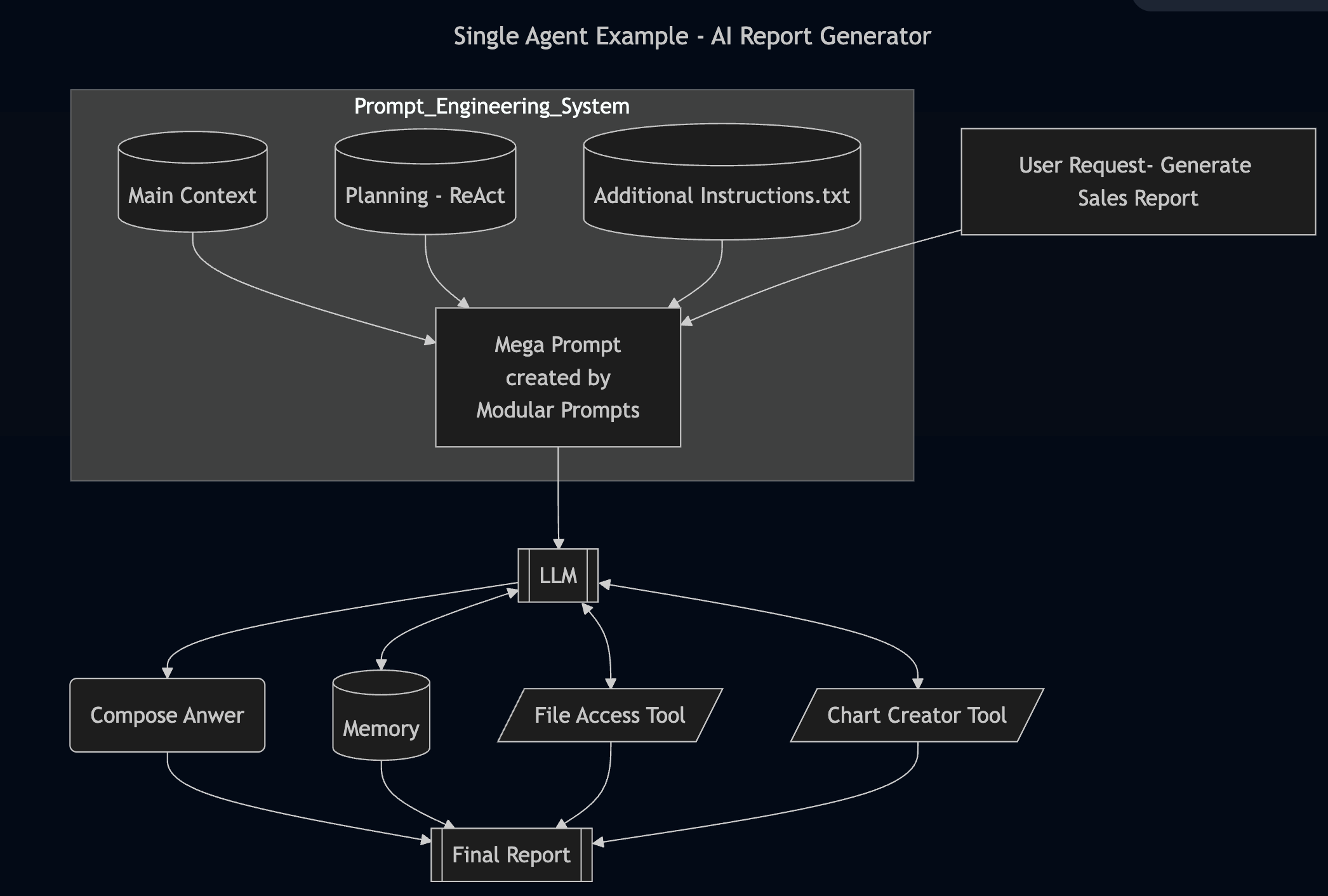

Example of a Single Agent Application

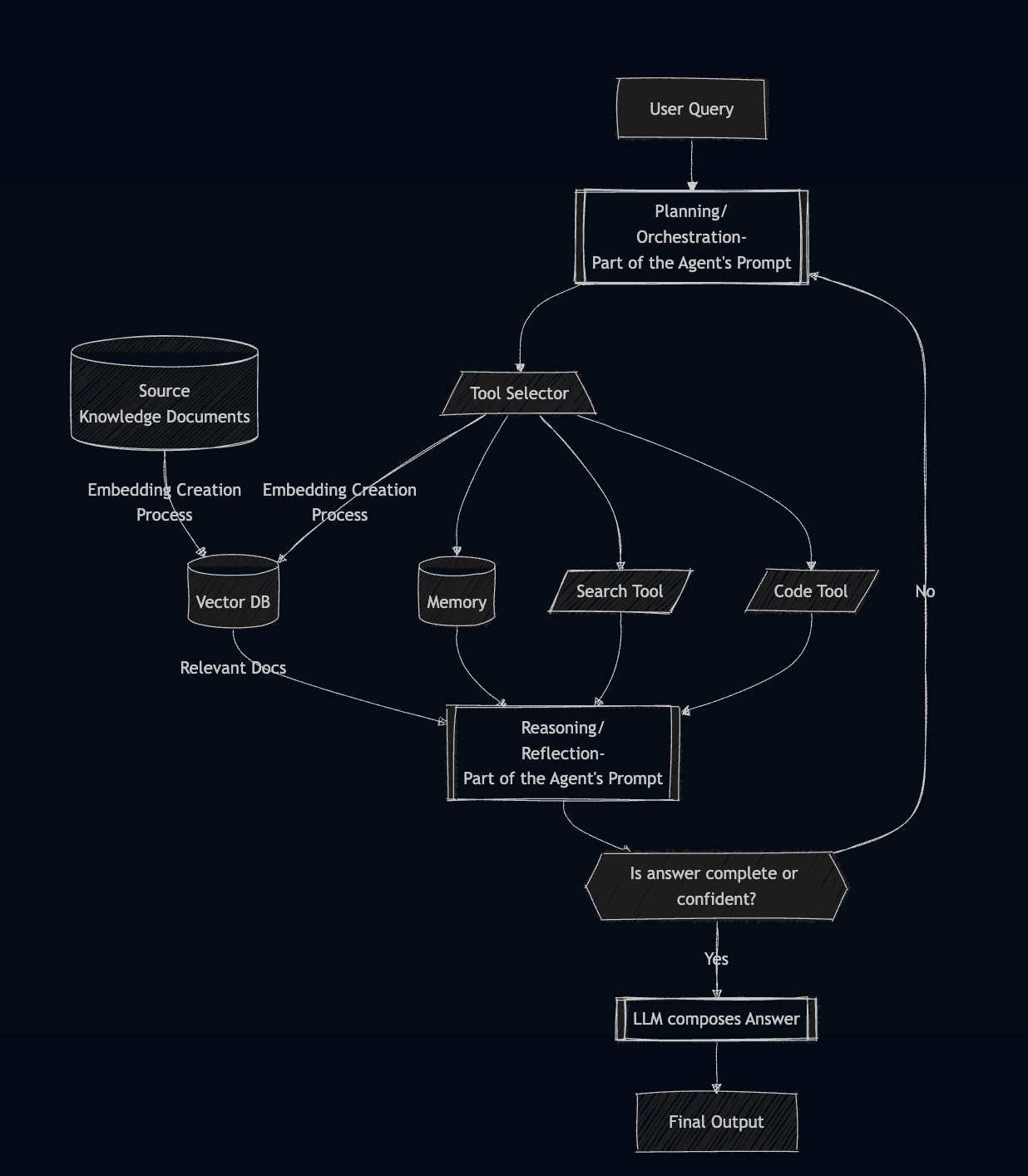

Agentic RAG

Agentic RAG is not one-shot retrieval.
The Agent retrieves, then reflects on the result, re-fetches if necessary

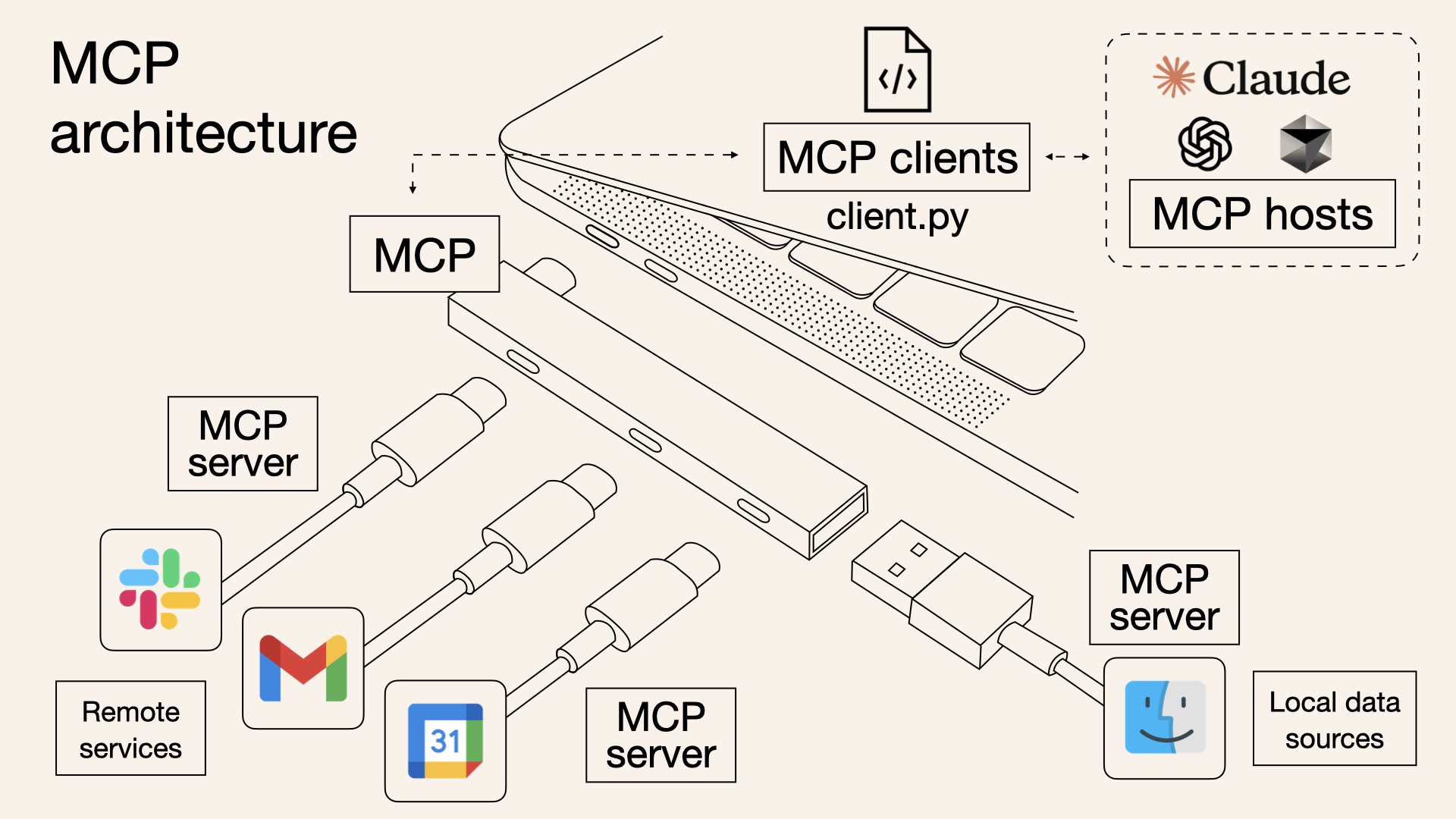

Where does MCP fit here?

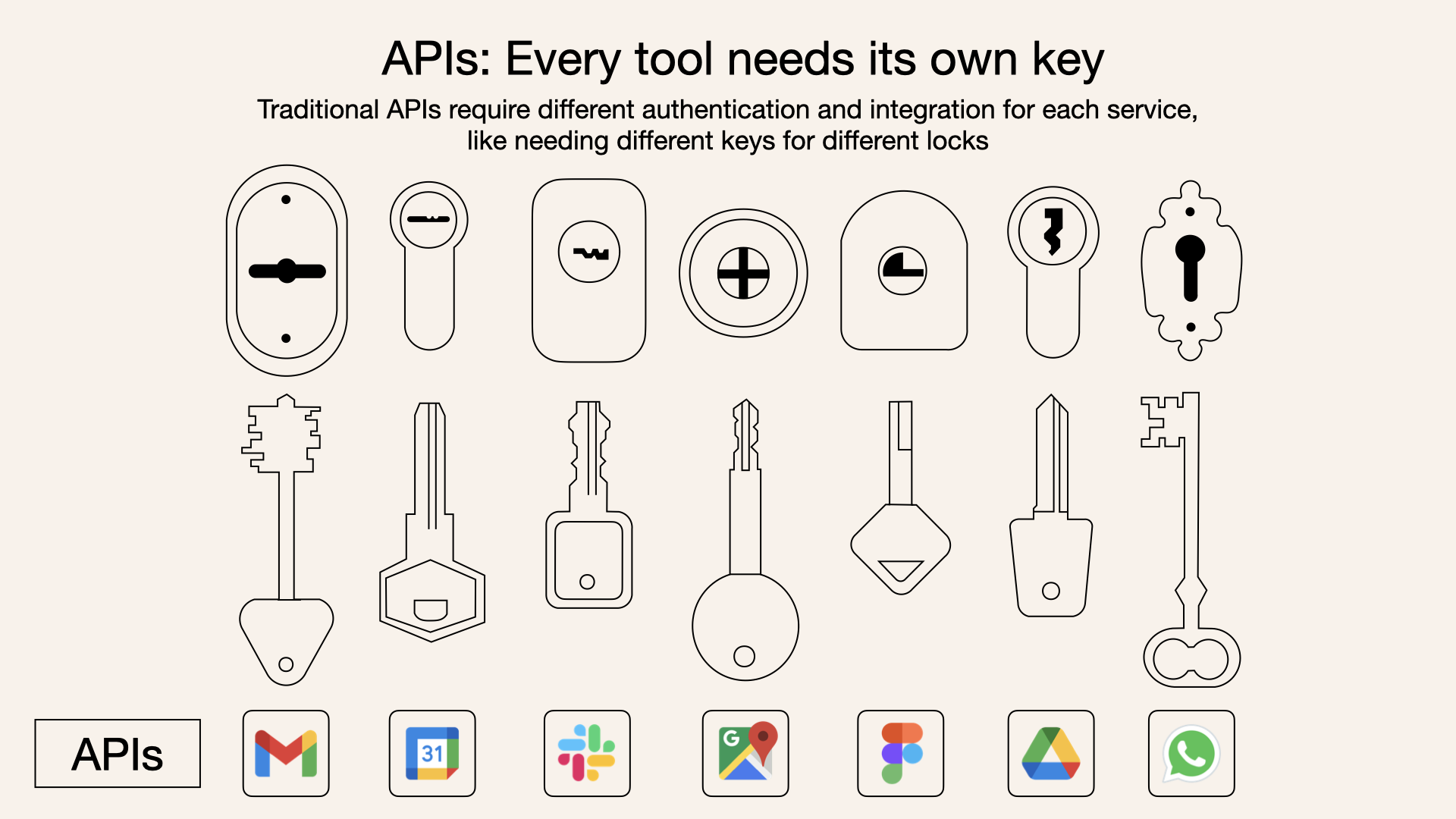

Before MCP:

After MCP:

Source of the amazing images: Norah Sakal Blog Post

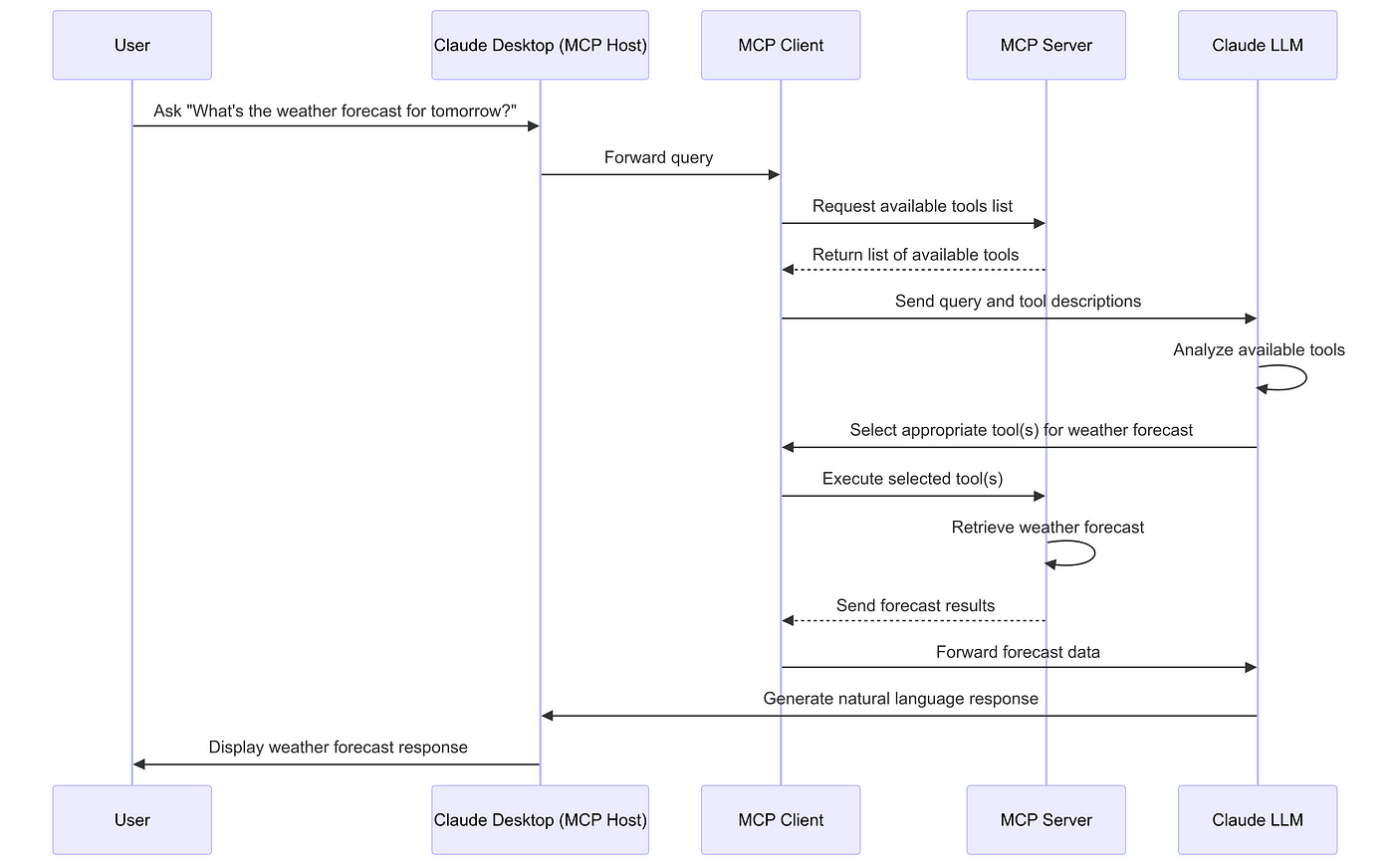

Where does MCP fit here?

MCP - Not just a package or library (well it has a python package!).
It is a protocol like TCP/SMTP. It is like OpenAPI Spec for REST APIs. source of the analogy
MCP standardizes how the context (prompt, tools, memory, retrieved docs, etc.,) get passed on to the Model.

Source of the amazing image: Hirusha Fernando Medium Article

Real World Agents - ChatGPT vs Perplexity vs OpenAI DeepResearch

ChatGPT: General Purpose Conversational AI whose knowledge is limited to the time of training data
Perplexity: Google (Search Engine) + ChatGPT (Conversational AI)
- Generates text as an answer with sources for every portion
Deep Research: An Agentic RAG with WebSearch (& other tools) and Multi-step reasoning source

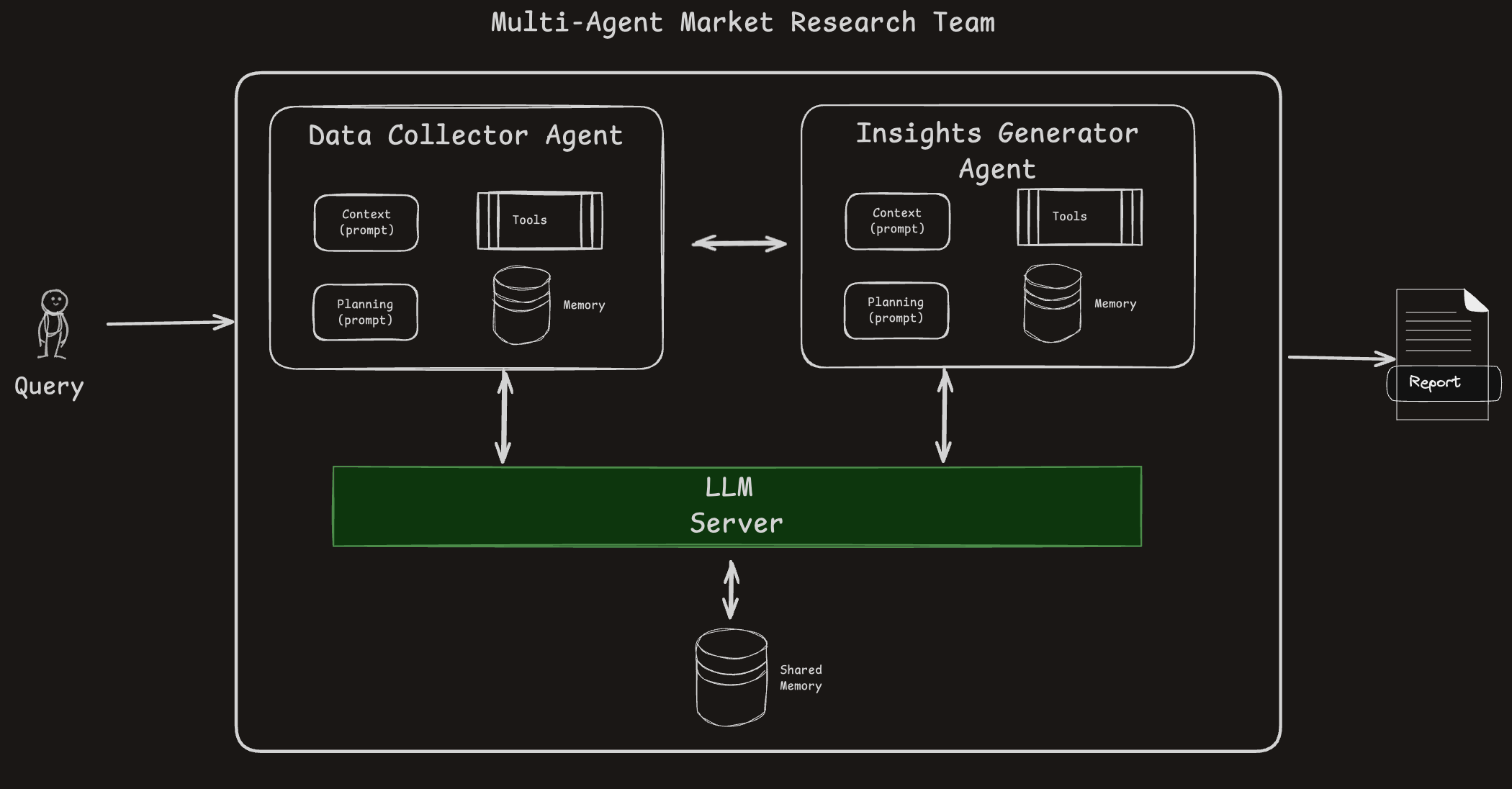

Multi-Agent Systems

Agents operate in parallel with their own responsibilities.
Shared memory is used for cross-agent communication.
Tool usage and autonomy allow scalable, modular problem-solving.

Conclusion

What the Experts Say? (1/2)

“Let us build a Multi-Agent System” - ❌ a wrong view to start with
- ✅ “What are we trying to solve”
Simpler systems are better:
- RAG LLM Chatbot >> Agentic RAG
- LLM + Function Calling >> Single Agent
- Single Agent (with different “modes”) >> Multi Agents
Have caution in using inference-compute-heavy Large Reasoning Models - the jury is still out!

What the Experts Say? (2/2)

Observability:
- Capability to review logs of LLMs or Agents function is key to success
Latency:
- Complex systems typically come with high Latency
Evaluation:
- Accuracy: Have your test questions clearly prepared and tested!
- Cost: Have a tab on the token usage.

My Main Resources

Mermaid Charts drawn from practical experience are collated here
Extensive interactions with ChatGPT/ Perplexity for correcting/editing my mermaid charts
The 10 Article Substack Piece by Aishwarya Naresh - The Nuanced Perspective
O’reilly Course on Modern Automated AI Agents
