4 Patterns × 3 Frameworks × 1 LLM: Building and Evaluating Agentic AI Patterns across LangGraph, Strands, and Hermes

Author: Senthil Kumar

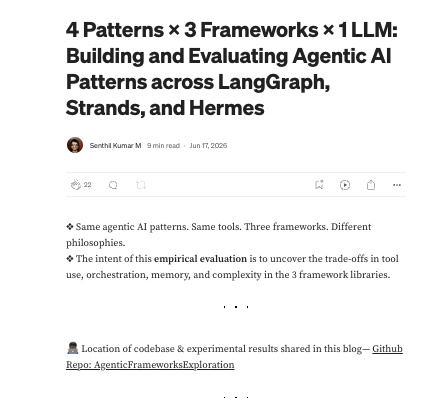

A better version of this blog is here: medium.com/@senthilkumar.m1901

❖ Same agentic AI patterns. Same tools. Three frameworks. Different philosophies.
❖ The intent of this empirical evaluation is to uncover the trade-offs in tool use, orchestration, memory, and complexity in the 3 framework libraries.

This question has been posed to my team and me multiple times: ❖ Which agentic AI framework do we choose?

Almost immediately, we used to default to LangGraph as the answer.

But I started hearing counter-arguments flying across the room: ❖ LangGraph too big, most modules not needed for us. ❖ Let us choose something lightweight like Temporal or Hermes (the craze at the time of writing this!).

Then, a Cloud Engineer would chime in: Ultimately, all production-grade agentic ai systems need to nestle and scale within our cloud. So, let us choose AWS Strands :).

When I asked one of my colleagues to review this blog, he asked why wasn’t Pydantic AI in here!.

So the quest in this blog is ❖ not to pick a favorite but ❖ to analyze the 3 preselected frameworks — LangGraph, Strands and Hermes — ❖ across 4 simple agentic ai patterns and show empirical evidence on where they shine, struggle, and surprise, when all conditions stay common.

I wished I had chosen more patterns and more frameworks for comparison. But the options seem endless!

So restricted the topic to a 4 X 3 setup here.

Key Sections of this Blog

I. The Entire Blog in 5 Min
1. The Agentic AI Patterns in Focus
1. Why LangGraph, Strands, and Hermes; Why Not Others?
1. Evaluation Analysis of the Patterns
V. Conclusion
1. Epilogue
1. GitHub Resource & Useful References

I. The Entire Blog in 5 Min

This post compares three agent frameworks across four progressively harder patterns. The goal is not to crown a single universal winner, but to show which design choice helps most when the workload changes.

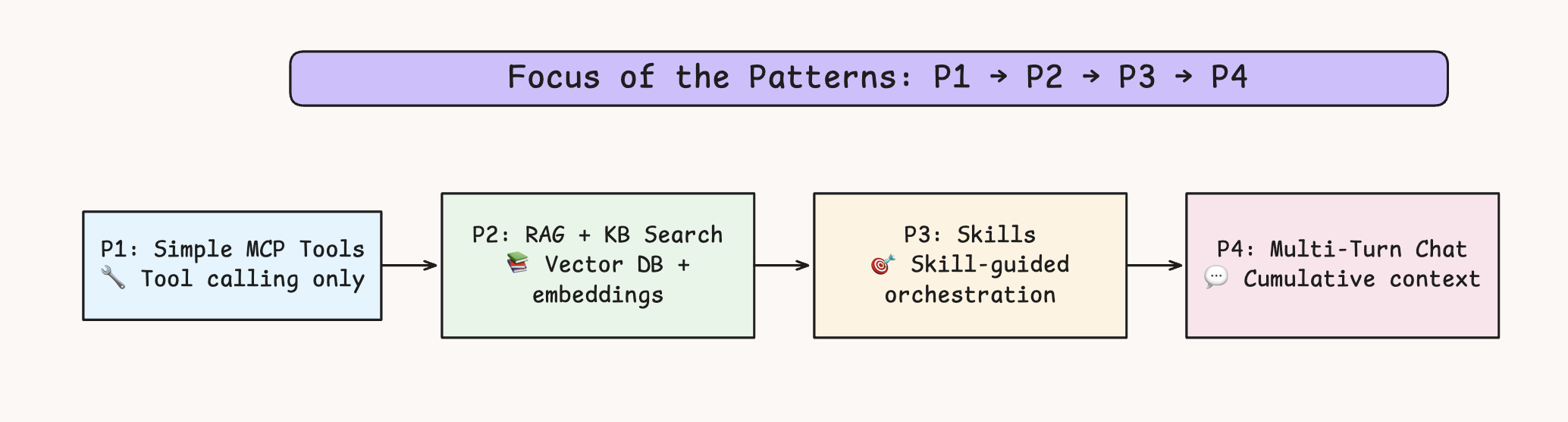

WHAT are we Analyzing? — 4 Architecture Patterns

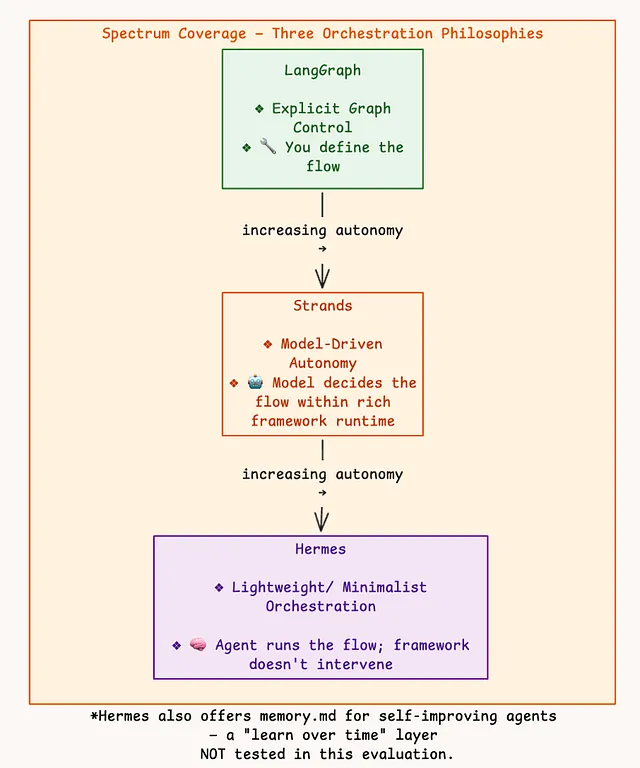

HOW are we analyzing? — With 3 Frameworks

WHY are we analyzing? — To Unearth Key Architectural Findings

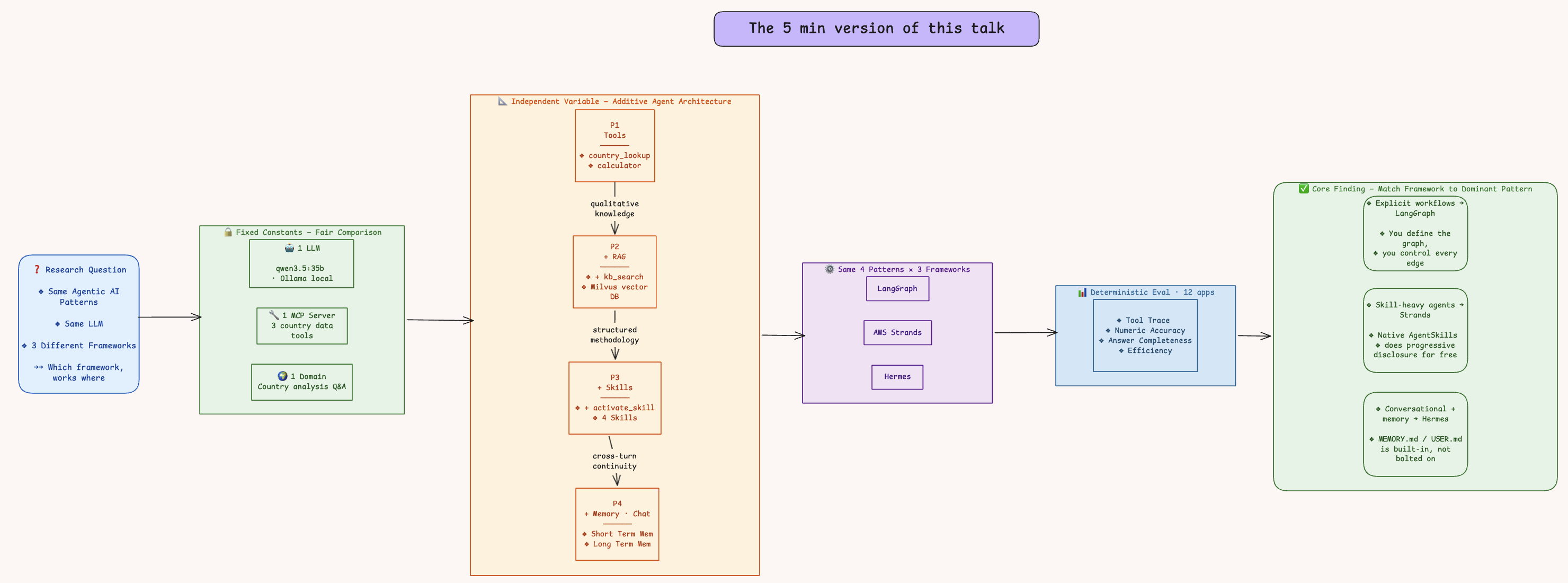

5-Minute Executive Summary - Detailed

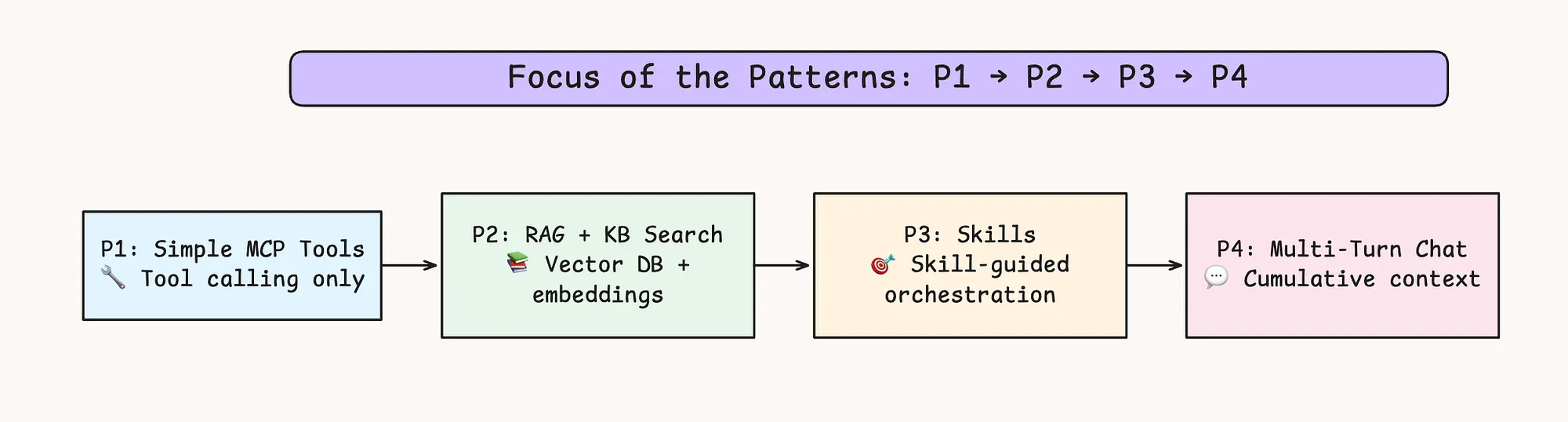

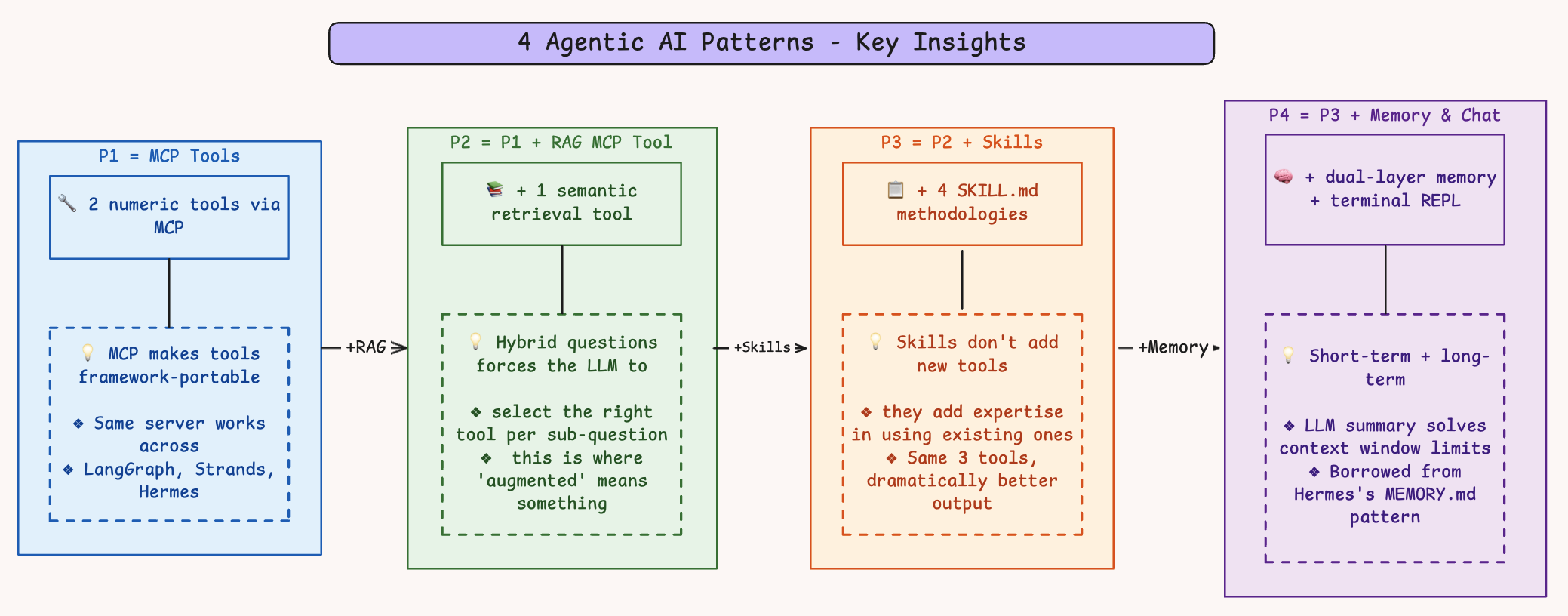

II. The Agentic AI Patterns in Focus

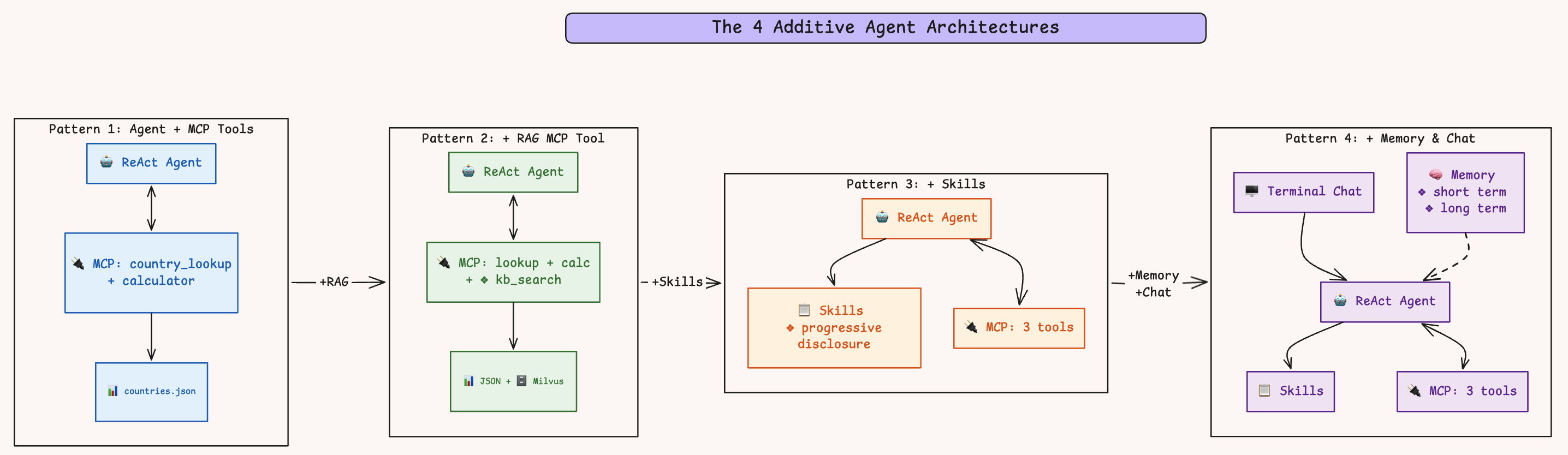

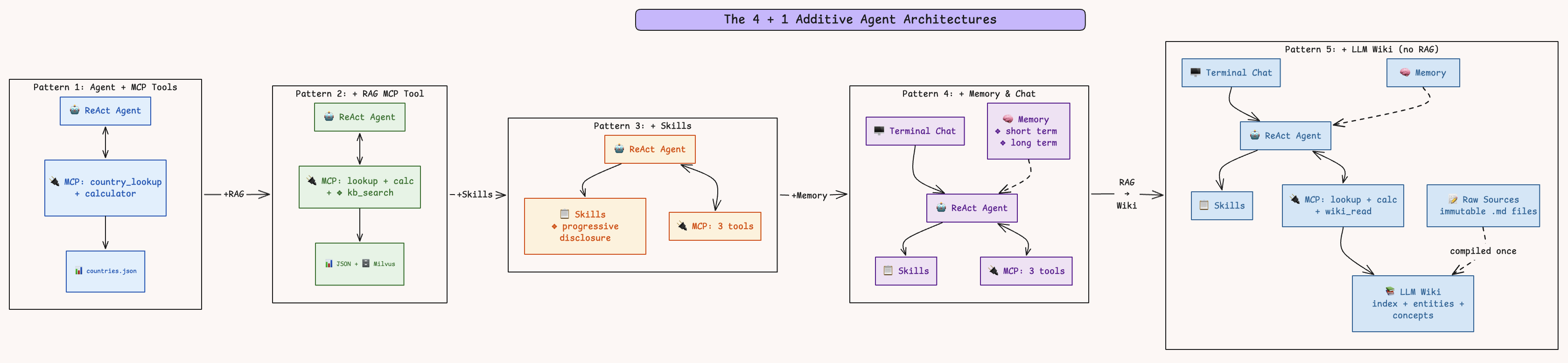

Additive Architecture Lens

The four patterns below move from basic tool use to retrieval, skills, and multi-turn memory, so you can see how each framework behaves as the orchestration problem becomes more demanding.

Pattern	Key Capability	Description
P1	MCP tools	AI Agent with 2 Numeric Tools
P2	+RAG tool	Same AI Agent with 2 Numeric Tools + 1 Semantic Retrieval Tool
P3	+Skills	Same AI Agent with same tools + Skills
P4	+Memory +chat	Same AI Agent with memory & terminal chat

Progressive Design : * Layer one new behavior at a time and measure impact

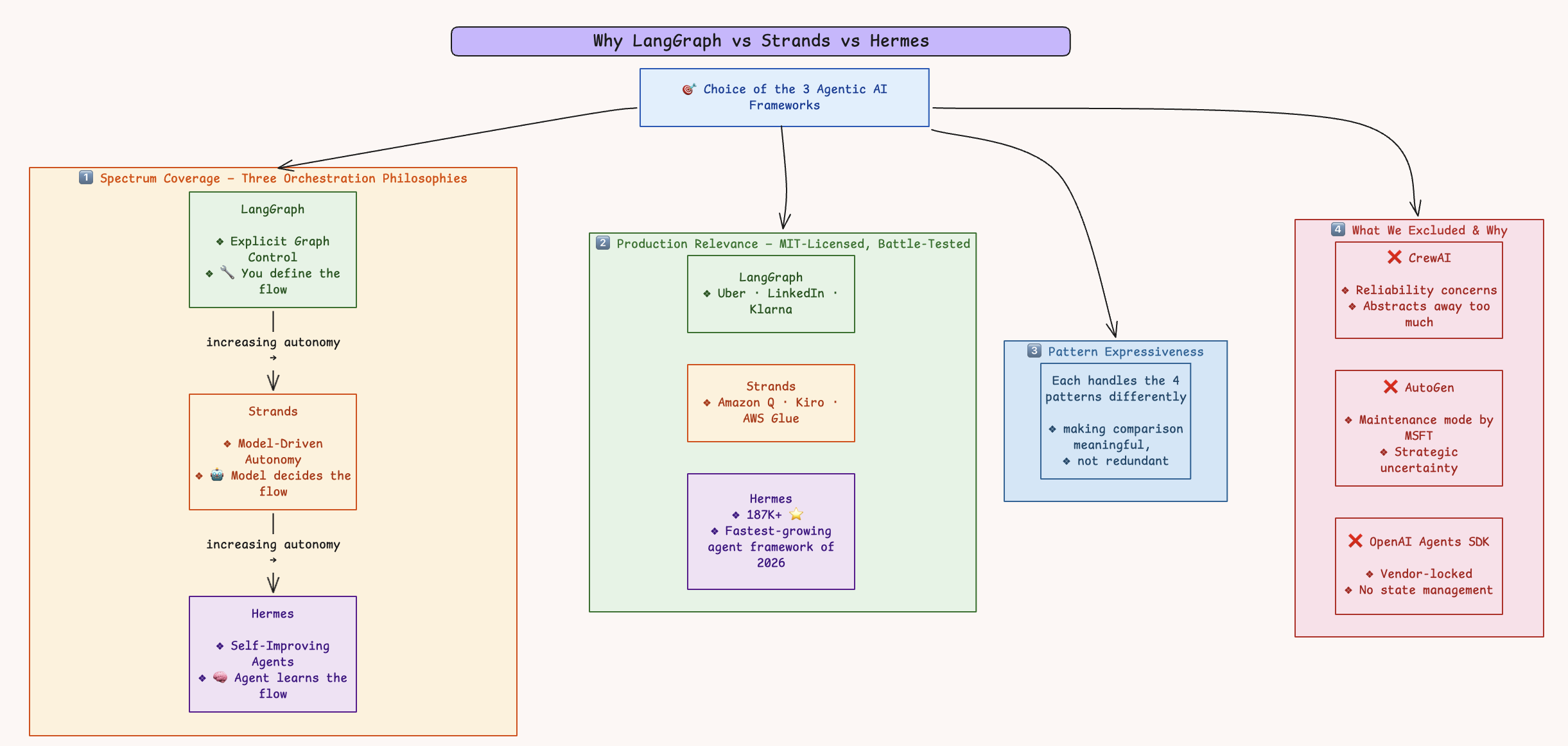

III. Why LangGraph, Strands, and Hermes; Why Not Others?

IV. What Does the Evaluation Say?

Evaluation Analysis of the Patterns

4 Patterns · 3 Frameworks · 40+ Experiments

These tables summarize the 40+ experiments in this post. The benchmark keeps the model, tools, and prompts fixed so the framework design is the main variable.

Core Question: Which framework should you use — and when?
Alt Question: If you’re building a custom framework, what’s the best feature to borrow from each?

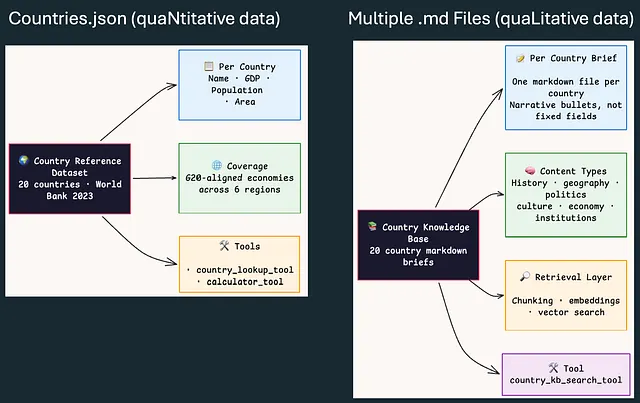

2 Data Sources, 3 Tools, 1 MCP Server

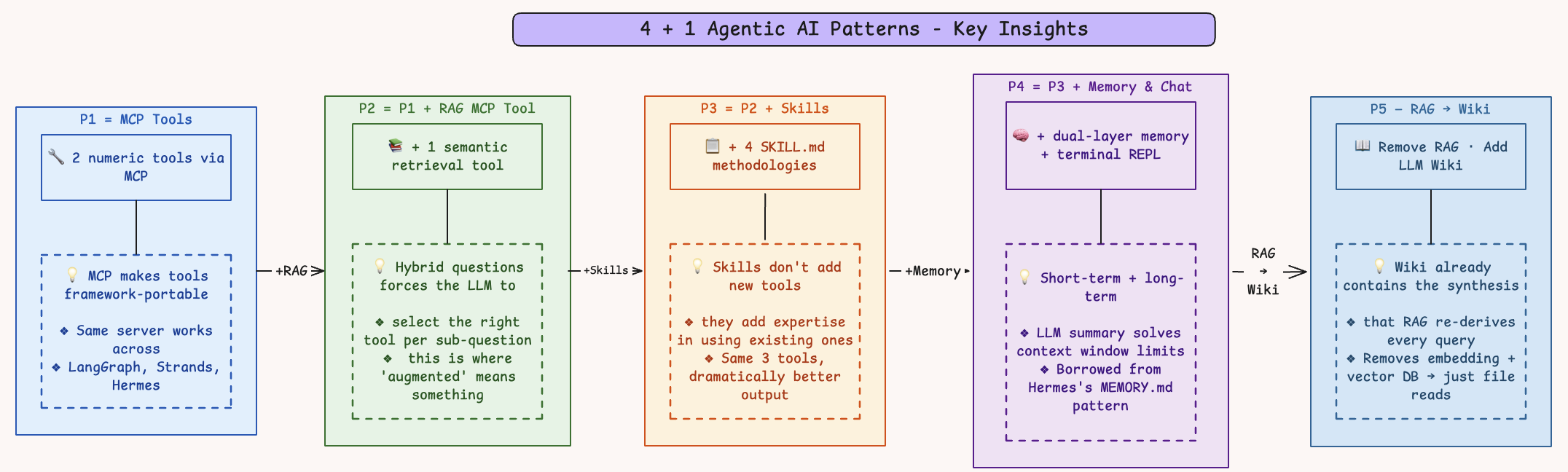

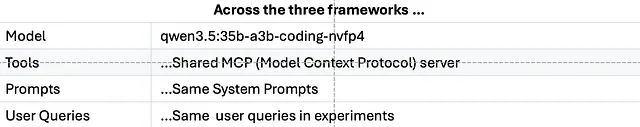

A Recap of the Patterns

Common Factor	Description
Model	`qwen3.5:35b-a3b-coding-nvfp4` (local Ollama — identical across all 3)
Tools	Same MCP (Model Context Protocol) server across 3 frameworks
Prompts	Uniform across 3 frameworks - LangGraph, Strands, Hermes

Patterns (Progressive Complexity)

Pattern	What It Tests	Key Challenge
P1 Simple MCP Tools	Basic tool calling + answer synthesis	Can the agent call tools and synthesize a coherent answer?
P2 RAG + KB Search	Vector DB retrieval + knowledge grounding	Can the agent combine structured + unstructured knowledge?
P3 Skills	Skill-guided multi-tool orchestration	Can the agent choose the right skill and follow its workflow?
P4 Multi-Turn Chat	Cumulative conversation context	How does cost scale with conversation depth?

The Winner is …

There is no universal winner in this benchmark. The right framework is pattern-dependent:

If you need…	Use…	Why
Simple tool orchestration	Hermes	Fastest, lightest
RAG-powered search	Strands	Lowest memory (44 MB), fastest RAG latency
Complex multi-skill workflows	LangGraph	100% accuracy, best multi-skill orchestration
Multi-turn chatbot	Hermes	Flat O(1) LLM scaling — cost doesn’t grow with depth

However, Hermes seems to be really promising (cannot help it :); so you borrow the maximum from here!)

Full Evaluation Report

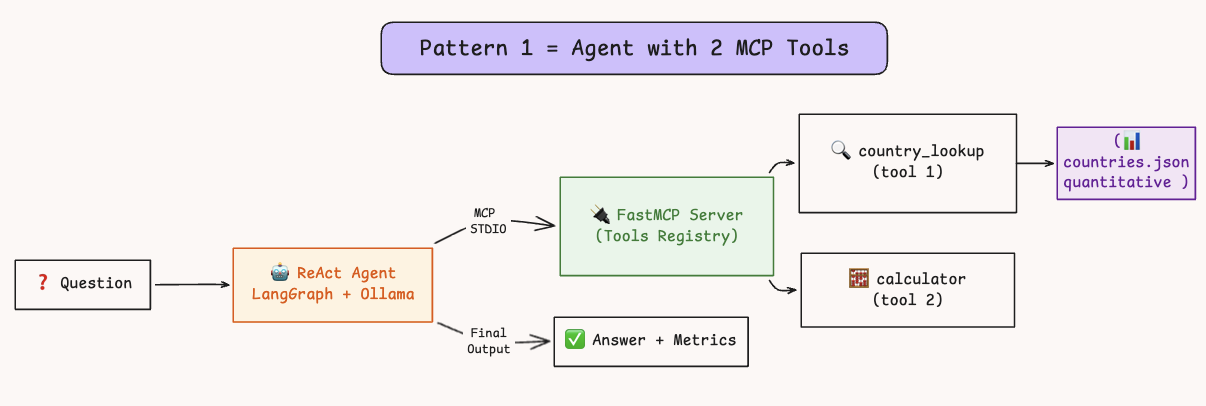

Pattern 1: Simple MCP Tools

The Test: Can the agent reliably use external tools and return a clean, human-friendly answer?

Instead of raw metrics, here’s how these frameworks felt during build and execution:

Feature	LangGraph	Strands	Hermes	Winner
Speed	12.4s	11.5s	9.5s	Hermes ⚡
Token Cost	3,140	3,559	3,092	Hermes 💸
Server Overhead	58.6 MB	41.1 MB	51.1 MB	Strands 🧠
Code Weight	76.9 MB	72.8 MB	49.3 MB	Hermes 🪶
Dependencies	175	142	101	Hermes 📦
Accuracy	100%	50%	75%	LangGraph 🎯

🏆 Verdict: Hermes wins on efficiency, LangGraph wins on reliability

If you want a fast, lightweight, low-cost agent, Hermes clearly leads—smaller codebase, fewer tokens, fastest responses.

But there’s a catch: Hermes and Strands often don’t finish cleanly.

Lazy Agent Problem:
Strands failed 50% of the time, Hermes 25%—dumping raw tool output instead of coherent answers.
LangGraph = predictable behavior:
Only framework with 100% accuracy, thanks to its enforced graph structure.

🛠️ Fix: Prompt Discipline Required

To get Hermes/Strands closer to LangGraph-quality outputs, you must force answer synthesis via prompt constraints:

_SYNTHESIS_SUFFIX = (
    "\n\nIMPORTANT: After using tools, you MUST always provide a final "
    "natural-language answer that synthesizes the results. "
    "Never end your response with just a tool call."
)

👉 Read the Full Pattern 1 Evolution Report

NOTE: * After uniformly fixing all 3 Frameworks with a suffix prompt, all 3 frameworks had reliable 100% accuracy

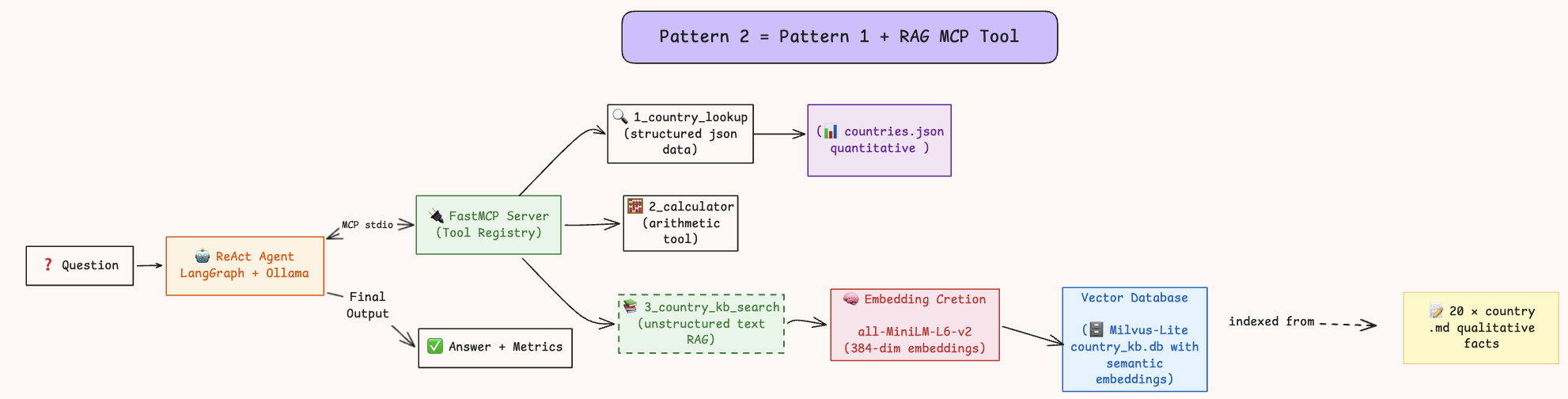

Pattern 2: RAG + Knowledge Base Search

The Test: Can the agent retrieve the right knowledge from a vector DB and combine it into a clean, accurate answer?

Here’s how each framework handled the RAG workload:

Feature	LangGraph	Strands	Hermes	Winner
Speed	31.7s	29.4s	32.8s	Strands ⚡
Token Cost	2,627	3,688	2,898	LangGraph 💸
Server Overhead	133.6 MB	44.0 MB	54.2 MB	Strands 🧠
Code Weight	984.8 MB	996.8 MB	967.2 MB	Hermes 🪶
Accuracy	100%	100%	100%	Tie 🎯

🏆 Verdict: Strands wins the systems battle, but all nail accuracy

If your agent is RAG-heavy (search + retrieval workflows), Strands stands out—fastest responses with significantly lower memory usage.

At the same time, all three frameworks achieved 100% accuracy, making this a purely systems-level comparison, not a correctness problem.

🔍 What actually mattered

The “RAG Tax” (Code Size):
All frameworks jumped to ~1GB due to embeddings + vector DB libraries.
Memory Efficiency (Big Differentiator):
Strands and Hermes isolate heavy components into background processes → low RAM usage
LangGraph loads everything in-process → high memory footprint
Token Trade-off:
Strands saves memory but spends more tokens
LangGraph is more concise (lowest token cost)

👉 Read the Full Pattern 2 Evolution Report

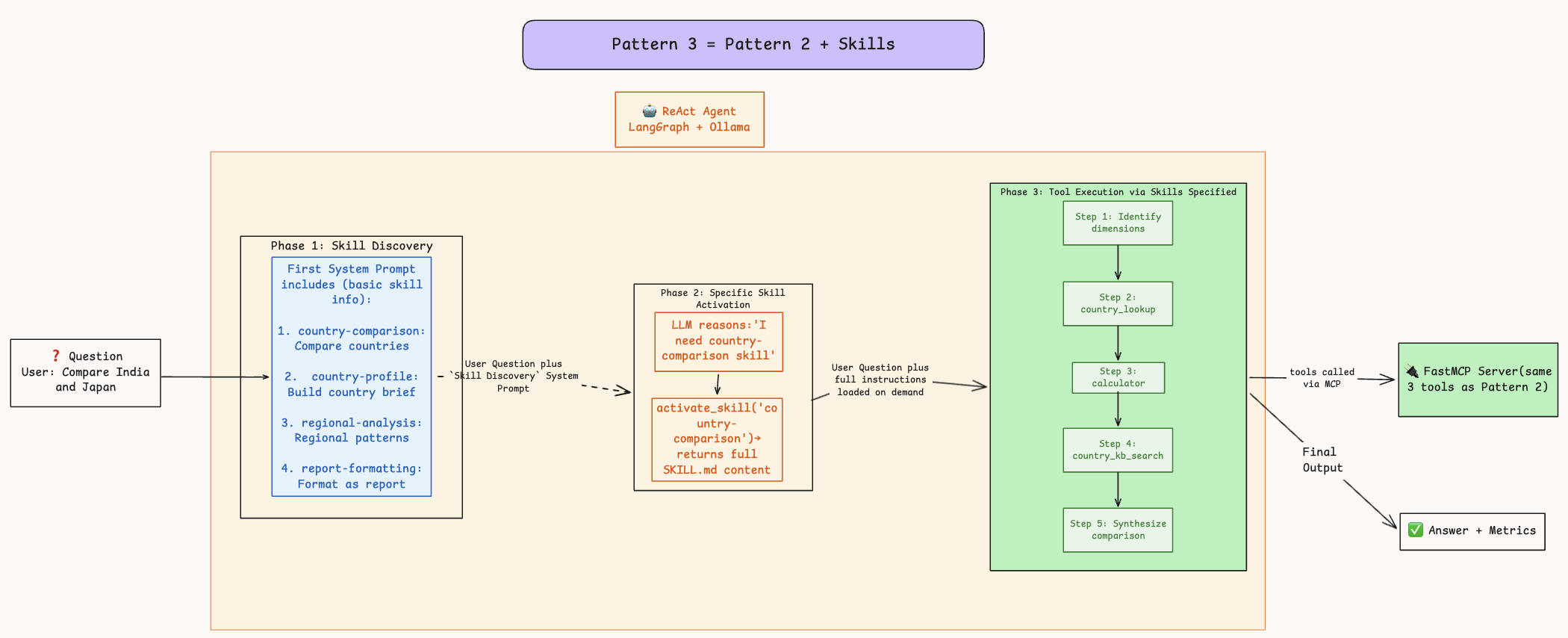

Pattern 3: Agent with Skills

The Test: Can the agent pick the right skill path and execute a multi-step plan without breaking logic?

Here’s how each framework handled guided orchestration:

Feature	LangGraph	Strands	Hermes	Winner
Speed	40.1s	34.7s	37.9s	Strands ⚡
Token Cost	9,499	14,154	8,031	Hermes 💸
Server Overhead	134.6 MB	45.6 MB	54.4 MB	Strands 🧠
Skill Selection	5/5	5/5	4/5	LangGraph / Strands 🛠️
Accuracy	100%	100%	75%	LangGraph / Strands 🎯

🏆 Verdict: LangGraph wins on precision, Strands on efficiency

If your workflow is high-risk, multi-step orchestration, LangGraph is the safest choice—it enforces structure and avoids logical mistakes.

Strands is faster and far more memory-efficient, but comes with a heavy token cost.

Hermes is lightweight and cheap—but this is where it starts to break.

🔍 What actually mattered

Precision vs Shortcutting:
Hermes chose the wrong skill path once → leading to a major factual error
(missed a country → wrong GDP output)
Self-healing vs Token Explosion:
Strands showed strong resilience (auto-corrected failures like UK → United Kingdom)
but paid for it with very high token usage
Built-in Guardrails (LangGraph):
Enforces deterministic execution → no wrong paths, no missed steps, 100% accuracy

👉 Read the Full Pattern 3 Evolution Report

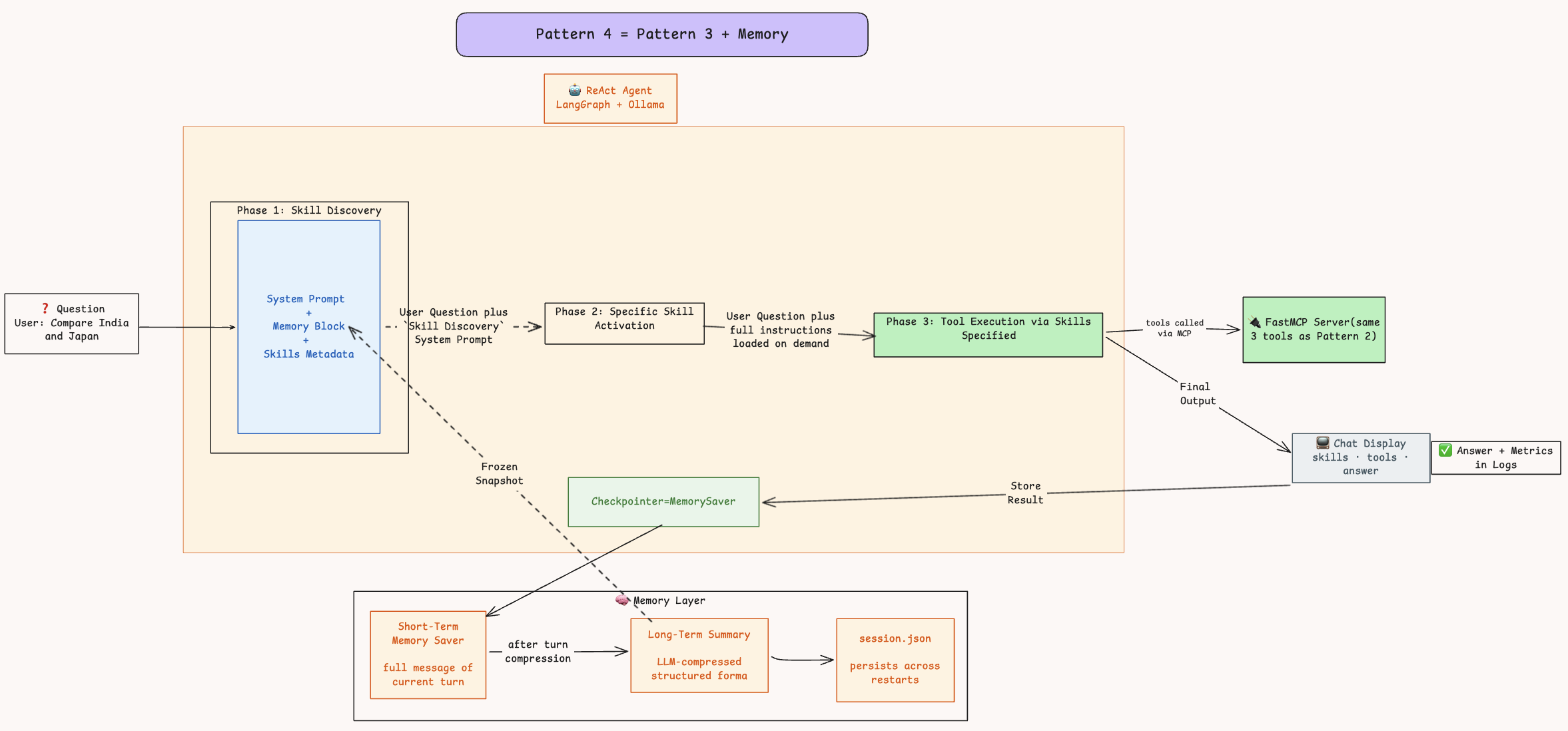

Pattern 4: Multi-Turn Conversational Agent

The Test: Can the agent handle long conversations without becoming slow, expensive, or context-blind?

Here’s how the frameworks scaled across turns:

Feature	LangGraph	Strands	Hermes	Winner
LLM Calls (Turn 1 → 4)	4 → 14 (3.5×)	6 → 33 (5.5×)	4 → 8 (2×)	Hermes 📉
Token Growth	4.6×	8.4×	2.6×	Hermes 💸
Chat Speed	62.8s	24.5s	34.8s	Strands ⚡
Context Retention	✅ Perfect	⚠️ Partial	❌ Failed	LangGraph 🧠
Error Recovery	Perfect	Perfect	Perfect	Tie 🛠️

🏆 Verdict: Hermes saves cost, LangGraph preserves intelligence

If cost scaling is your concern, Hermes is the clear winner—lowest growth in LLM calls and tokens.

But this comes with a trade-off: context awareness drops sharply.

🔍 What actually mattered

Cheap but Forgetful (Hermes):
Struggles with context. Missed simple follow-ups
(“Same for Brazil” → wrong comparison)
Fast but Expensive (Strands):
Fastest responses, but token usage explodes with history replay
Accurate but Heavy (LangGraph):
Retains full context and reasoning
but scales via more LLM calls (brute force)

🛠️ Practical Fix (No Framework Change Needed)

You can fix both issues with a small architectural addition:

Hermes: Add intent clarification step
→ resolves vague follow-ups before execution
LangGraph: Add history compression step
→ summarize past chats to control LLM call growth

👉 Read the Full Pattern 4 Evolution Report

Appendix

If you want to understand the LLM Call Spike numbers from turn 1 to 4 better, refer this github analysis here: Analysis of LLM Call Spike in Pattern 4

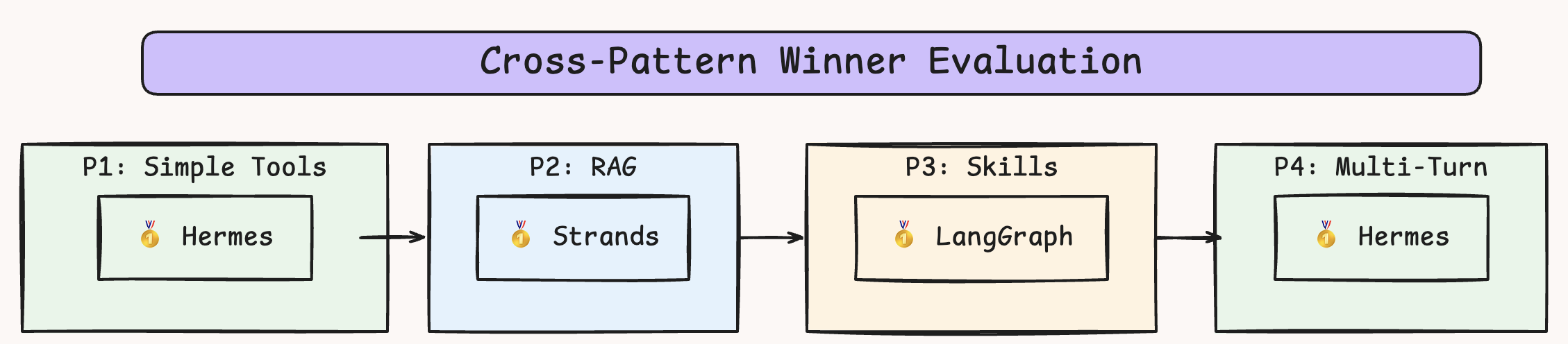

A Summary of the Winners (debatable!)

V. Key Learnings

1. No bad frameworks — only untested ones

Framework	Best	Worst
LangGraph	100% accuracy (P1+P3)	134 MB memory, slowest
Strands	44 MB memory, fast warm turns	33 LLM calls by Turn 4, 124K tokens
Hermes	O(1) scaling, 2.6× token growth	❌ Failed context test, missed Russia

2. Architecture reveals weaknesses before your users do

Framework	Architecture	Weakness It Creates
LangGraph	Graph state machine — re-evaluates every node	LLM calls grow linearly; high in-process memory
Strands	Full context replay — every call sees everything	Tokens explode as turns increase
Hermes	Fixed loop — plan once, execute, answer	Shallow history reasoning; fails implicit references

None of these showed up in Pattern 1. All surfaced by Pattern 4.
The architecture didn’t change — the workload revealed it.

3. Evaluation is a product feature, not an afterthought

Standard metrics tell you how fast. Designed tests tell you how wrong.

Measured	Discovered	How
Latency, tokens, memory	Hermes is fastest, cheapest	Standard metrics
“Same for Brazil”	Hermes drops context	Designed test
“Most populous European country”	Same model, different framework → different answer	Designed test
European GDP total	Hermes picked wrong skill → missed a country	Designed test

Every ❌ was caught by a designed test, not a dashboard.
If we’d only measured speed and cost, Hermes would look flawless.

1. No bad frameworks — only untested ones

Framework	Best	Worst
LangGraph	100% accuracy (P1+P3)	134 MB memory, slowest
Strands	44 MB memory, fast warm turns	33 LLM calls by Turn 4, 124K tokens
Hermes	O(1) scaling, 2.6× token growth	❌ Failed context test, missed Russia

2. Architecture reveals weaknesses before your users do

Framework	Architecture	Weakness It Creates
LangGraph	Graph state machine — re-evaluates every node	LLM calls grow linearly; high in-process memory
Strands	Full context replay — every call sees everything	Tokens explode as turns increase
Hermes	Fixed loop — plan once, execute, answer	Shallow history reasoning; fails implicit references

None of these showed up in Pattern 1. All surfaced by Pattern 4.
The architecture didn’t change — the workload revealed it.

3. Evaluation is a product feature, not an afterthought

Standard metrics tell you how fast. Designed tests tell you how wrong.

Measured	Discovered	How
Latency, tokens, memory	Hermes is fastest, cheapest	Standard metrics
“Same for Brazil”	Hermes drops context	Designed test
“Most populous European country”	Same model, different framework → different answer	Designed test
European GDP total	Hermes picked wrong skill → missed a country	Designed test

Every ❌ was caught by a designed test, not a dashboard.
If we’d only measured speed and cost, Hermes would look flawless.

VI. Epilogue

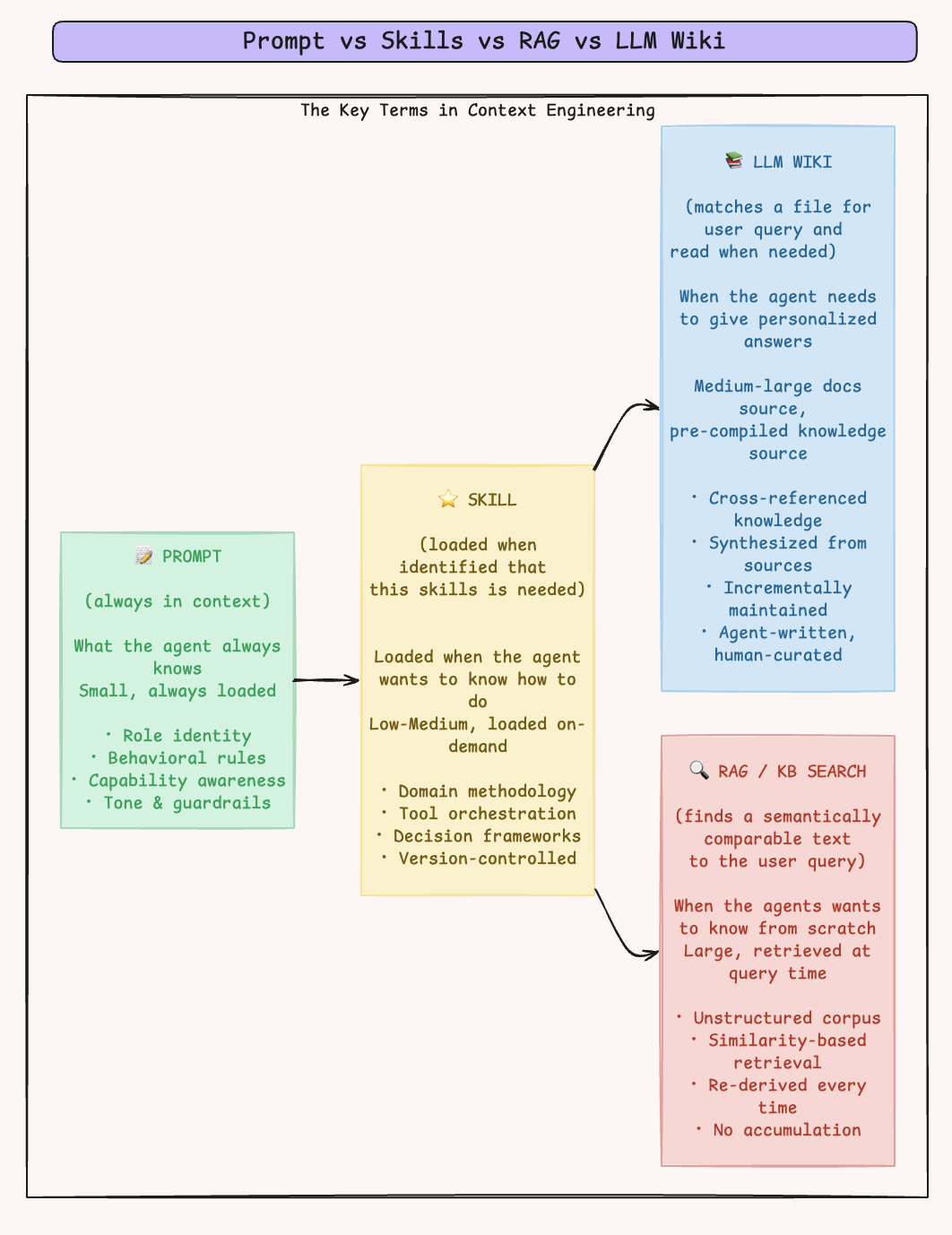

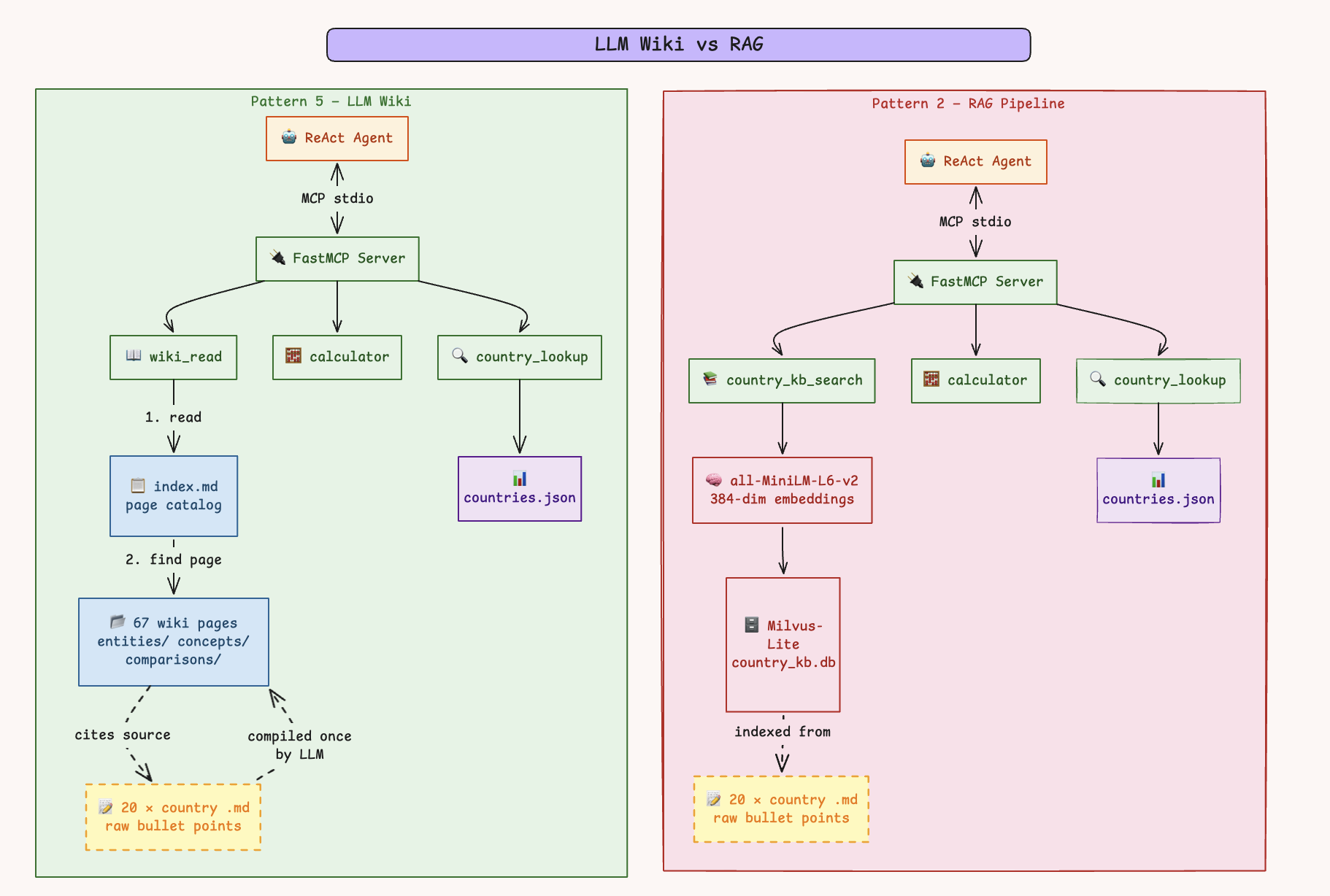

Bonus Pattern 5: (-)RAG -> (+)Wiki

Remove RAG; include Karpathy’s LLM Wiki pattern.

For the next iteration:

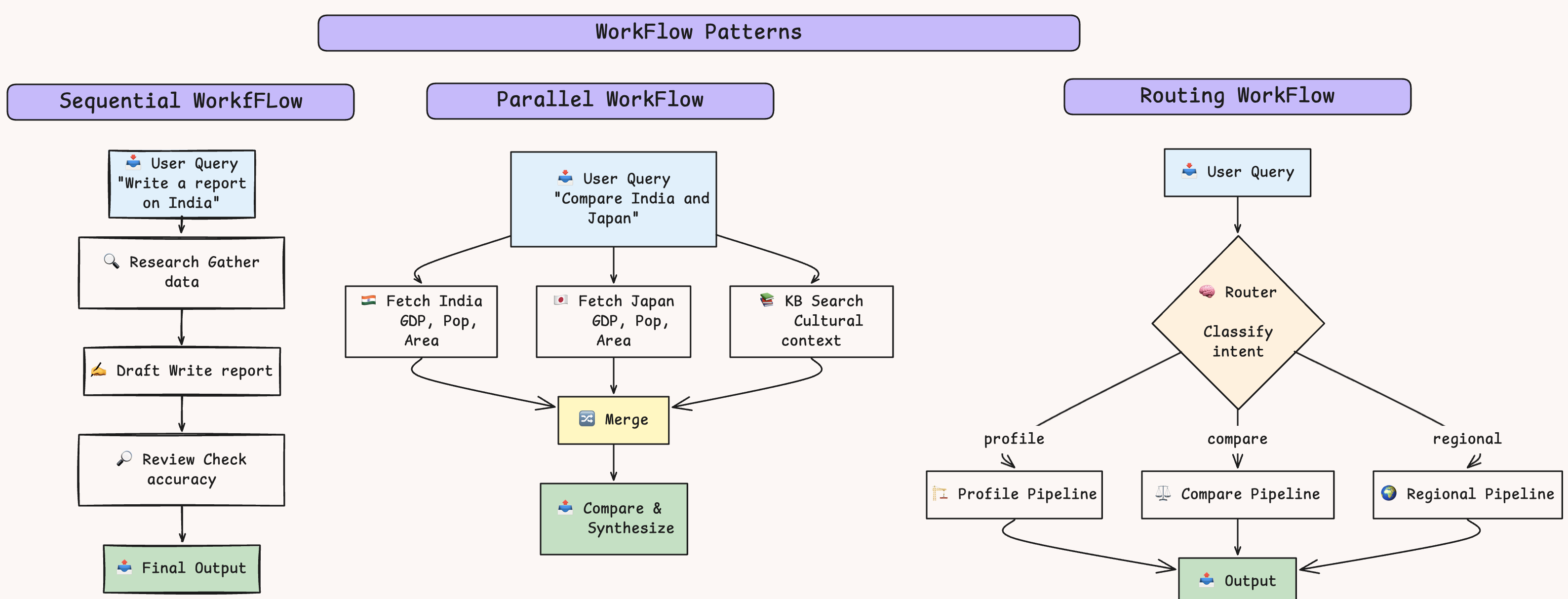

Try Workflow Patterns
- Routing-Workflow
- Parallel-Workflow
- Sequential-Workflow

Try comparing with other agentic AI frameworks
- There are still other good ones like: temporal (python/typescript), pydantic ai (python), rig (rust)

Reproducibility note: These results reflect one local Ollama-based benchmark run with the same model, the same MCP tools, and the same prompts across all three frameworks. If you rerun them with a different model or different tool behavior, the rankings may change.

VII. Github Resource

The codebase, evaluation reports conducted are logged in github here: senthilkumarm1901/agentic_frameworks_exploration

Useful Reading References

Follow below links for reading material on Agentic AI, each expanding on the link above that.

Simple article first: Building Effective AI Agents
Inspired by the above article and based on my day-to-day experience, I wrote an article on similar lines long ago: https://medium.com/@senthilkumar.m1901/single-llm-to-agentic-ai-genais-evolution-explained-c0670d83…
None of the above have skills explained well: Equipping agents for the real world with Agent Skills
Same Stuff as 1 but elaborated further with Skills and More Agentic Patterns; Anthropic gave version 2: https://resources.anthropic.com/hubfs/Building%20Effective%20AI%20Agents-%20Architecture%20Patterns…
Hermes Agent Masterclass (the pics here are 👌)
The Context Engineering 101 (in pic):
